In essence, powder compacting is a manufacturing process that uses the immense, controlled force of a hydraulic press to compress powdered material inside a mold, or die. This action forces the individual powder particles to deform and lock together, forming a solid object that precisely matches the shape of the die cavity.
The core purpose of powder compacting is not just to create a shape, but to achieve a specific, uniform density and create a solid "green compact" part with engineered material properties before it undergoes a final heating process like sintering.
The Mechanics of Powder Compacting
To understand powder compacting, it's essential to look at the role of the press, the tooling involved, and the distinct stages of the process.
The Role of the Hydraulic Press
A hydraulic press is the ideal machine for this task because it provides precise and consistent force.
Unlike a mechanical press that delivers force in a rapid stroke, a hydraulic press can apply and hold a specific tonnage for a set duration. This control is critical for managing the final density of the part.
The Core Components: Die, Punch, and Powder
The process centers on a tooling set. A hardened steel die creates the outer shape of the part, while one or more punches enter the die to compress the powder.
The powder itself can be a metal, ceramic, polymer, or composite mixture, chosen for the final part's desired characteristics.
The Three Critical Stages of Compaction
The transformation from loose powder to a solid part occurs in a controlled sequence.
-
Die Filling: A precise volume of powder is loaded into the die cavity. The amount of powder directly influences the final part's density and size, so this step must be highly repeatable.
-
Compaction: The punches are driven into the die by the hydraulic press. This immense pressure eliminates the voids between powder particles, deforms them, and forces them into intimate contact, creating a solid mass.
-
Ejection: The punches retract, and the bottom punch pushes the newly formed part, now called a "green compact," out of the die. This part is solid enough to be handled but typically requires a subsequent heating process (sintering) to achieve its final strength.
Understanding the Trade-offs
Powder compacting is a powerful technique, but its suitability depends entirely on the application. It comes with distinct advantages and limitations.
The Primary Advantage: Speed and Repeatability
Once the tooling is created and the press is programmed, powder compacting can produce thousands of identical parts with very tight dimensional and density tolerances. This makes it extremely efficient for high-volume production.
The Primary Advantage: Material Efficiency
This process is a form of near-net-shape manufacturing, meaning the initial part is very close to its final dimensions. This results in minimal material waste compared to subtractive methods like machining, which cut away large amounts of raw material.
A Key Limitation: Tooling Costs
The hardened steel dies and punches are complex and must be manufactured to extremely high tolerances. This initial investment in tooling can be substantial, making the process less economical for low-volume runs or one-off prototypes.
A Key Limitation: Shape Constraints
While excellent for many shapes, the process has geometric limitations. Features like undercuts, cross-holes, or internal threads are generally not possible to form during the compaction stage and must be added in secondary operations.
Making the Right Choice for Your Goal
Selecting the right manufacturing process requires aligning its capabilities with your primary objective.
- If your primary focus is high-volume production of consistent parts: Powder compacting is an excellent choice due to its high speed, low material waste, and exceptional repeatability.
- If your primary focus is creating parts with highly controlled density or porosity: The precise force control of a hydraulic press makes this process ideal for engineering specific material properties.
- If your primary focus is low-volume prototyping or extremely complex geometries: Alternative methods like CNC machining or additive manufacturing (3D printing) are likely more cost-effective.
By understanding these principles, you can leverage powder compacting not just to form a shape, but to engineer a material with specific, desired properties from the ground up.
Summary Table:
| Aspect | Key Details |
|---|---|
| Process Definition | Compressing powder in a die with a hydraulic press to form a solid 'green compact' |
| Primary Advantages | High speed, repeatability, material efficiency, and precise density control |
| Key Limitations | High tooling costs and geometric constraints (e.g., no undercuts) |
| Ideal Applications | High-volume production, parts requiring controlled density or porosity |
Ready to enhance your laboratory's manufacturing capabilities? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver precise powder compacting for consistent, high-quality parts. Our solutions help you achieve superior material properties and efficiency in your processes. Contact us today to discuss how our equipment can meet your specific needs and drive your innovations forward!

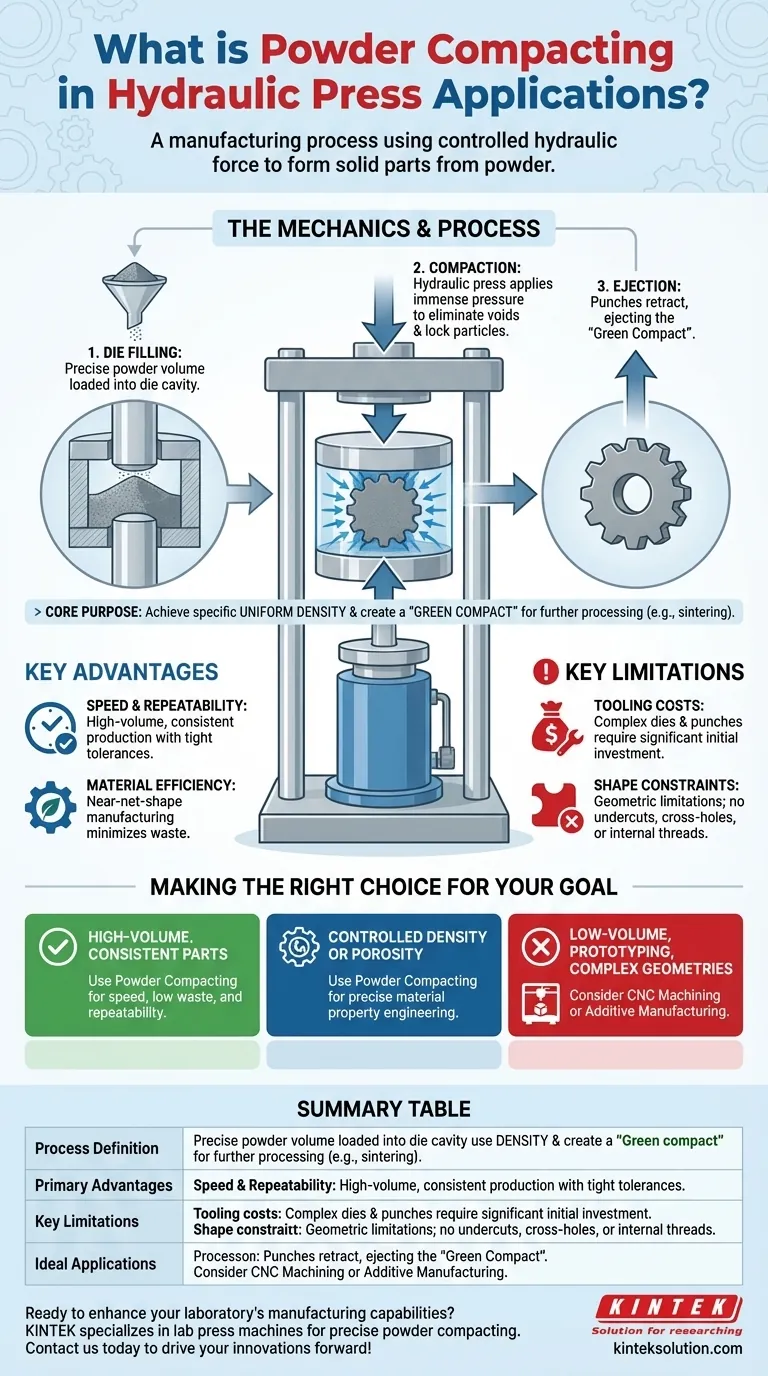

Visual Guide
