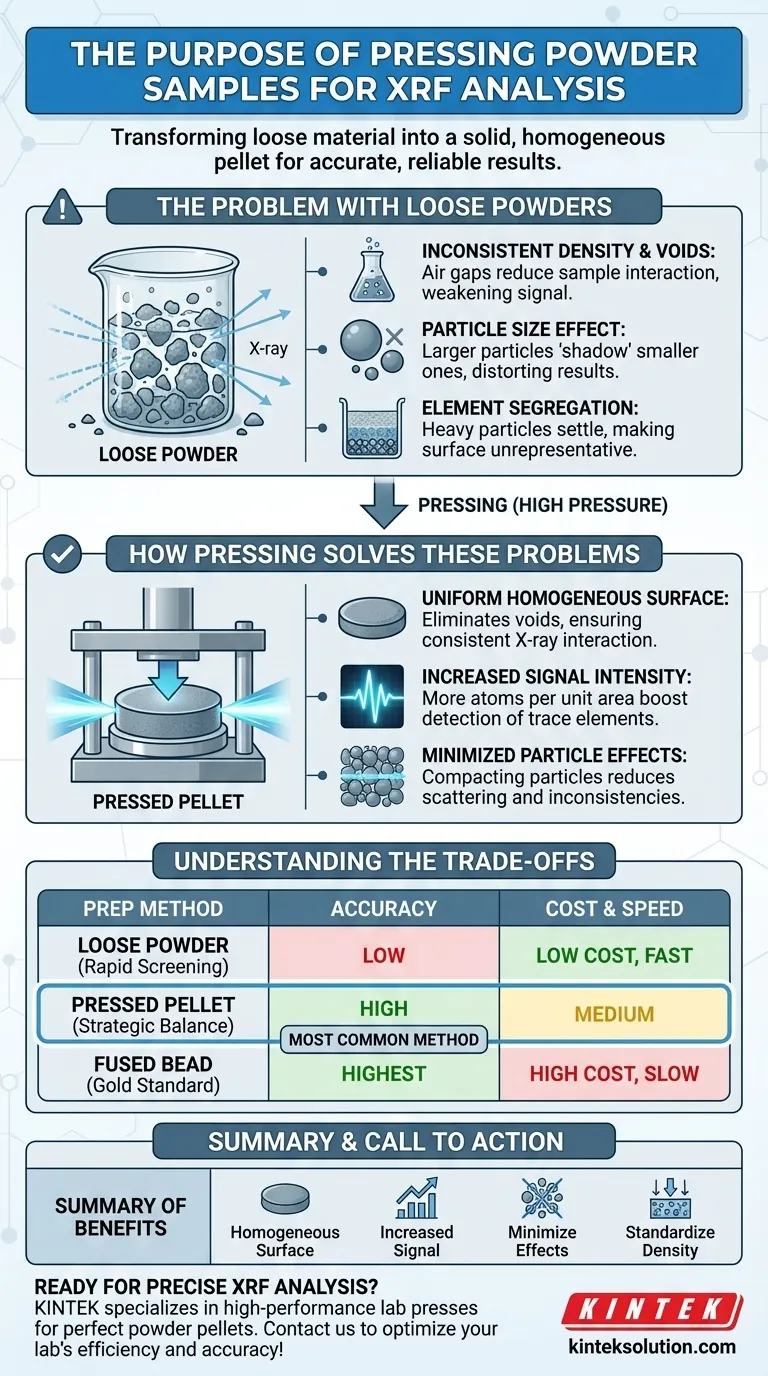

The primary purpose of pressing powder samples for XRF analysis is to transform a loose, non-uniform material into a solid, homogeneous pellet with a perfectly flat surface. This process is not merely for handling convenience; it is a critical step that directly controls the accuracy, precision, and reliability of the analytical results.
The core problem with unprepared powders is a lack of control over physical variables like density, surface roughness, and particle distribution. Pressing a pellet standardizes these factors, ensuring the X-ray spectrometer measures the sample's true chemical composition rather than artifacts of its physical form.
The Problem with Analyzing Loose Powders
To understand the importance of pressing pellets, we must first recognize the analytical challenges presented by a simple, loose powder sample. The shallow "information depth" of XRF means it only analyzes a thin layer of the sample's surface, making surface consistency paramount.
Inconsistent Sample Density and Voids
A loose powder is composed of solid particles and air. These voids reduce the amount of actual sample material interacting with the X-ray beam, weakening the resulting fluorescent signal and making it less representative of the bulk material.
The Particle Size Effect
Samples containing a mix of fine and coarse particles will produce inaccurate results. The way X-rays are scattered and absorbed varies with particle size, creating a "shadowing" effect where larger particles can block the fluorescence from smaller ones, distorting the measured elemental concentrations.
Element Segregation
In a loose powder, particles can easily segregate due to vibration or settling, with heavier or denser particles sinking to the bottom. Since XRF primarily analyzes the surface, this leads to a measurement that is not representative of the entire sample.
How Pressing Solves These Problems
Pressing the powder under high pressure addresses each of these issues by creating a standardized, ideal sample format for XRF analysis.
Creating a Uniform, Homogeneous Surface
The high pressure of a hydraulic press forces the powder particles together, eliminating voids and creating a solid disc with a uniform density. This ensures that the X-ray beam interacts consistently across the entire analysis area, providing a truly representative measurement.
Increasing Signal Intensity
By removing air gaps and compacting the material, a pressed pellet presents more atoms to the X-ray beam per unit area. This dramatically increases the intensity of the fluorescent signal, which is especially critical for accurately detecting and quantifying trace elements in the parts-per-million (ppm) range.
Minimizing Particle and Mineralogical Effects
While pressing cannot completely eliminate all particle size effects, it significantly reduces them by compacting the particles into a fixed, dense matrix. This minimizes scattering inconsistencies and ensures the analytical surface is a more accurate average of the bulk sample's composition.
Understanding the Trade-offs: Pellets vs. Alternatives
Pressed pellets represent a strategic balance between accuracy, cost, and speed, but they are not the only option.
Loose Powders: For Rapid Screening Only
Analyzing unprepared powder is the fastest method but also the least accurate. It is suitable only for rough, qualitative screening where precise concentrations are not required.
Fused Beads: The Gold Standard for Accuracy
For the highest possible precision, samples can be prepared as fused beads. This involves dissolving the sample powder in a molten lithium borate glass flux and casting it into a disc. This process completely eliminates all particle size and mineralogical effects but is significantly more expensive, time-consuming, and complex than pressing pellets.
Why Choose Pressed Pellets?
Pressed pellets are the most common preparation method for a reason. They deliver high-quality, quantitative results that are vastly superior to loose powders while being much faster and more cost-effective than creating fused beads.
Making the Right Choice for Your Goal
Selecting the correct sample preparation method depends entirely on your analytical requirements for accuracy and throughput.
- If your primary focus is rapid, qualitative screening: Loose powders may be sufficient for a quick check or material identification.
- If your primary focus is accurate, quantitative analysis for process control or research: Pressed pellets offer the best overall balance of precision, speed, and cost.
- If your primary focus is the highest possible accuracy for certification or complex materials: Fused beads are the superior method, as they completely remove physical matrix effects.
By understanding these principles, you can confidently select the sample preparation technique that best aligns with your analytical goals.
Summary Table:
| Purpose | Key Benefit |
|---|---|
| Create Homogeneous Surface | Ensures consistent X-ray interaction for accurate measurements |
| Increase Signal Intensity | Enhances detection of trace elements by removing voids |
| Minimize Particle Effects | Reduces scattering and segregation for reliable analysis |
| Standardize Sample Density | Provides uniform physical properties across the sample |
