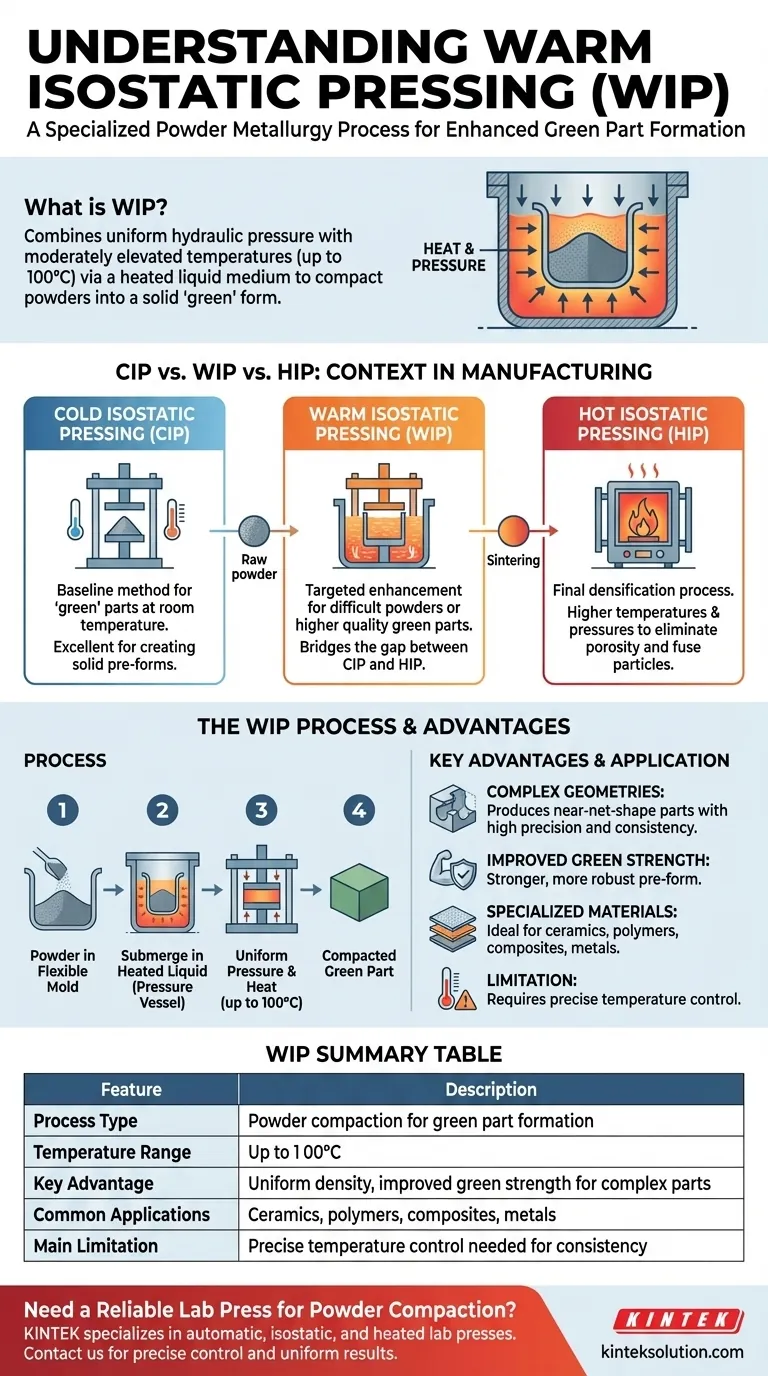

Warm Isostatic Pressing (WIP) is a specialized manufacturing process that combines uniform pressure application with controlled heating to consolidate powdered materials. It bridges the gap between Cold Isostatic Pressing (CIP) and Hot Isostatic Pressing (HIP) by operating at intermediate temperatures, typically below the boiling point of the liquid medium used. This method uses flexible molds and hydraulic pressure to achieve isotropic compaction, making it ideal for materials requiring precise temperature control or those sensitive to room-temperature processing. WIP enhances material properties by removing trapped gases and impurities while maintaining dimensional accuracy, offering versatility across industries like aerospace, medical devices, and advanced ceramics.
Key Points Explained:
-
Definition and Mechanism
- WIP is a variation of isostatic pressing that incorporates heating elements to warm the liquid medium (usually water or oil) before applying hydraulic pressure.
- The process uses flexible jacket molds to envelop powdered materials, ensuring uniform pressure distribution from all directions.
- Unlike warm isostatic press, which operates at higher temperatures, WIP stays below the medium’s boiling point (typically 80–250°C).
-
Comparison with CIP and HIP
- Versatility: WIP fills the niche between CIP (room temperature) and HIP (extreme heat and pressure), suitable for materials needing moderate thermal treatment.
- Material Benefits: Higher temperatures than CIP improve particle bonding and density, while avoiding HIP’s extreme conditions reduces energy costs for heat-sensitive materials.
-
Process Steps
- Heating the Medium: The liquid is warmed to achieve optimal viscosity for pressure transmission.
- Pressure Application: A booster injects the heated medium into a sealed cylinder, compressing the powder uniformly.
- Temperature Control: A heat generator maintains precise temperatures to ensure consistency.
-
Types of WIP Systems
- Gas-Based: Uses inert gases (e.g., argon) and reaches up to 500°C, ideal for high-temperature alloys.
- Liquid-Based: Employs oils or water, capped at 250°C, suited for ceramics and polymers.
-
Advantages
- Improved Material Quality: Removes trapped gases and impurities, enhancing density and mechanical properties.
- Design Flexibility: Accommodates complex geometries due to uniform pressure and mold adaptability.
- Energy Efficiency: Lower temperatures than HIP reduce operational costs for certain applications.
-
Applications
- Medical: Densifying titanium or cobalt-chrome for implants.
- Aerospace: Forming turbine blades with minimal internal defects.
- Electronics: Producing high-purity ceramic substrates.
-
Equipment Considerations
- Pressure ranges vary from low (for delicate materials) to extreme (for superalloys).
- System selection depends on temperature requirements, material sensitivity, and production scale.
By integrating controlled heat with isostatic pressure, WIP addresses limitations of traditional methods, offering a balanced solution for advanced material fabrication. How might this technology evolve to support emerging materials like graphene composites?
Summary Table:
| Key Aspect | Details |
|---|---|
| Temperature Range | 80–250°C (liquid-based) or up to 500°C (gas-based) |
| Pressure Application | Uniform hydraulic pressure via flexible molds |
| Primary Advantages | Removes trapped gases, enhances density, accommodates complex geometries |
| Common Applications | Medical implants, aerospace components, ceramic substrates |
| Comparison to CIP/HIP | Balances energy efficiency (vs. HIP) and improved bonding (vs. CIP) |
