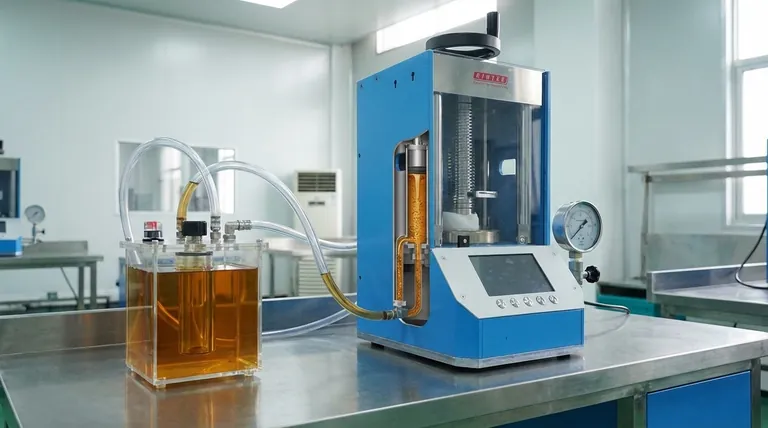

At its core, hydraulic fluid is the medium that transmits force within a hydraulic press. This specialized fluid, typically oil-based, is responsible for converting the initial power from a pump into the immense compressive force the press exerts. Its unique properties ensure this energy transfer is both highly efficient and smooth.
A hydraulic press appears to create immense force from nothing, but the true magic lies in the hydraulic fluid. The fluid doesn't create force; it acts as a nearly perfect medium for transmitting and, more importantly, multiplying force according to Pascal's Law.
The Core Principle: Force Multiplication in a Closed System
The entire operation of a hydraulic press is governed by a fundamental principle of fluid dynamics discovered centuries ago. The hydraulic fluid is the agent that makes this principle a reality.
The Role of Pascal's Law
A hydraulic press works on Pascal's Law, which states that pressure applied to an enclosed, incompressible fluid is transmitted equally throughout the fluid in all directions.
Think of the fluid not as a force creator, but as a perfect force messenger. When the system's pump applies pressure to the fluid in one area, every other part of the fluid experiences that exact same pressure increase instantly.
How Fluid Enables Force Multiplication
This is where the genius of the system lies. A hydraulic press uses two pistons of different sizes: a small one (the plunger) and a large one (the ram).
A small force is applied to the small plunger, which creates a specific pressure in the hydraulic fluid (Pressure = Force / Area).
Because that pressure is transmitted equally everywhere, the same pressure is now pushing up on the large ram. Since the ram has a much larger surface area, the resulting force it exerts is massive (Force = Pressure x Area). The fluid is the key that links these two sides of the equation.
Why Oil is the Standard Hydraulic Fluid
While water could theoretically work in a simple demonstration, professional hydraulic systems almost exclusively use specialized oil-based fluids. This choice is based on several critical properties.
Near-Incompressibility for Efficiency
The primary job of the fluid is to transmit pressure, not absorb it. Oils are highly resistant to compression. This means when the pump applies force, nearly 100% of that energy goes into moving the ram, not squandering it by squishing the fluid.
Lubrication to Protect Components
A hydraulic press is a system of moving metal parts under extreme stress. The hydraulic fluid acts as a crucial lubricant for the pump, pistons, and seals, drastically reducing friction and wear. This ensures a long operational life for the machine.
Thermal and Chemical Stability
Hydraulic systems generate significant heat under high pressure. The fluid must be able to withstand these high temperatures without breaking down or losing its essential properties. It also contains additives that prevent corrosion and rust inside the system's components.
Understanding the Trade-offs and Potential Failures
The fluid is the lifeblood of the system, but it is also a potential point of failure if not properly managed. Understanding its limitations is key to maintaining a reliable press.
The Critical Danger of Contamination
The single greatest threat to a hydraulic system is contamination. Dirt, debris, or water can damage pumps and seals. However, the most insidious contaminant is air.
Unlike fluid, air is highly compressible. If air bubbles get into the fluid, the system will feel "spongy" and lose its force-multiplying efficiency, as energy is wasted compressing the air instead of moving the ram.
The Impact of Fluid Viscosity
Viscosity is the fluid's resistance to flow. If the fluid is too thick (high viscosity), the pump must work harder, wasting energy. If it's too thin (low viscosity), it may not seal properly around the pistons or provide adequate lubrication, leading to internal leaks and wear.
Degradation Over Time
Hydraulic fluid does not last forever. Over time, the extreme heat and pressure will cause the fluid and its protective additives to break down. This is why following a regular fluid replacement schedule is non-negotiable for system health.
Making the Right Choice for Your Goal
Maintaining the hydraulic fluid is central to the performance and longevity of any hydraulic press. Your maintenance strategy should align with your primary operational objective.
- If your primary focus is maximum force efficiency: Ensure the system is completely bled of air and use a high-quality, incompressible fluid specified by the manufacturer.
- If your primary focus is system longevity: Prioritize a fluid with a robust additive package for lubrication and corrosion resistance, and implement a strict filtration and replacement schedule.
- If your primary focus is operation in extreme temperatures: Select a fluid with a high viscosity index, which ensures its flow characteristics remain stable across a wide temperature range.
Ultimately, the hydraulic fluid is the active component that translates a small, manageable input force into an output of immense power.
Summary Table:
| Function | Description |
|---|---|
| Force Transmission | Transmits and multiplies force via Pascal's Law in a closed system. |
| Lubrication | Reduces friction and wear on pumps, pistons, and seals. |
| Thermal Stability | Withstands high temperatures without breaking down. |
| Incompressibility | Ensures efficient energy transfer with minimal loss. |
| Contamination Risks | Air or debris can cause sponginess, leaks, or reduced efficiency. |
