To choose the right hydraulic lab press for your pellet die sets, you must evaluate four key areas. First, ensure the press has the force capacity (tonnage) to achieve your required consolidation pressure. Second, verify its physical dimensions can accommodate your die set. Third, confirm it has a reliable force gauge for accuracy and repeatability. Finally, consider application-specific needs like temperature control and automation.
Your choice of a hydraulic press is not about the machine in isolation; it's about creating a complete system. The goal is to select a press that provides precise, repeatable control over the specific forces your pellet die set requires to produce consistent, high-quality samples for analysis.

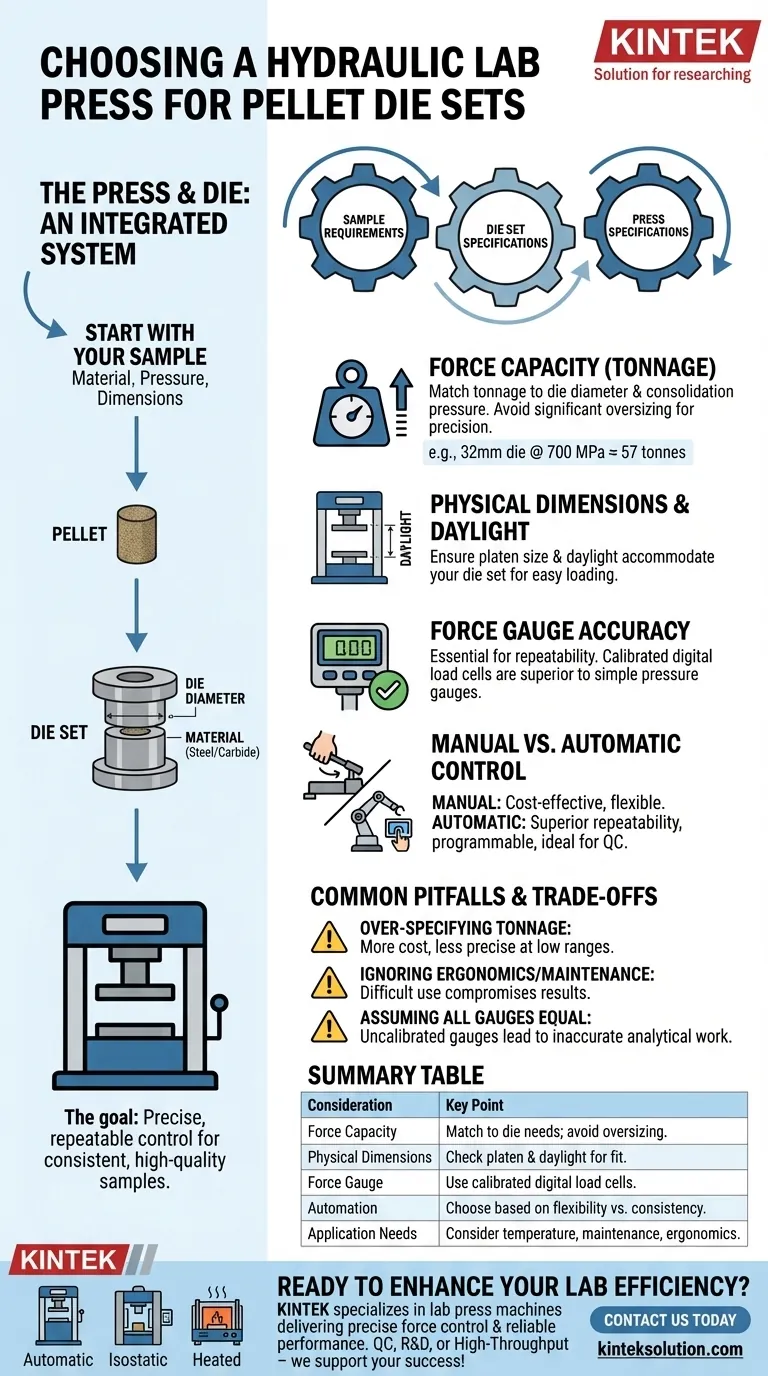

The Press and Die as an Integrated System
Viewing the press and the die as separate components is a common mistake. The selection process should begin with your end goal—the pellet—which in turn dictates the die, and finally, the press.
Start with Your Sample Requirements
The characteristics of your final pellet determine everything else. What is the material you are pressing? Is it abrasive, reactive, or a fine powder?
The answers dictate the pressure needed for consolidation and the ideal final pellet dimensions (diameter and thickness) required for your analytical instrument, such as an XRF spectrometer.
Determine Your Die Set Specifications
Based on your sample requirements, you will choose a die set. The two most important factors are its diameter and material.
The die's diameter, combined with the required consolidation pressure (e.g., in PSI or MPa), directly determines the total force (tonnage) you will need from the press. The die's material—such as standard hardened steel or more durable tungsten carbide for abrasive samples—ensures longevity and prevents sample contamination.
Core Press Specifications to Evaluate
Once you have defined your die set requirements, you can assess potential hydraulic presses against a clear set of criteria.
Force Capacity and Tonnage
This is the maximum load the press can generate. You must calculate the force needed for your largest die set. For example, pressing a 32mm diameter sample at 700 MPa requires approximately 57 tonnes of force.
Always select a press with a capacity slightly above your maximum calculated need, but avoid significant oversizing, as it can reduce precision at lower force ranges.
The Critical Role of the Force Gauge
A press is useless for scientific applications without a way to measure the applied force accurately. A clear, calibrated force gauge or digital display is non-negotiable for repeatability.
This ensures that every pellet you make is created under the exact same conditions, which is essential for reliable analytical results. Simple pressure gauges on the hydraulic line are less accurate than digital load cells that measure the force at the platens.
Physical Dimensions and "Daylight"
The press must physically accommodate your die set. Check the platen diameter to ensure it's larger than your die.
Most importantly, evaluate the "daylight," which is the maximum vertical working space between the press platens. This must be large enough to fit your assembled die set with enough room for easy loading and unloading.
Manual vs. Automatic Control
Manual presses, operated by a hand pump, are cost-effective and suitable for labs with varied needs and lower throughput. Their repeatability, however, depends heavily on the operator.
Automatic presses are programmable, allowing you to set a target force and, in some cases, hold times. They offer superior repeatability and consistency, making them ideal for quality control environments or high-throughput labs where user-to-user variability must be eliminated.
Understanding the Trade-offs and Pitfalls
Selecting the wrong press can introduce variability into your results and create workflow inefficiencies. Be aware of these common mistakes.
Over-specifying Tonnage
Buying a 100-ton press when you only need 25 tons is not better. Over-sized presses are more expensive, take up more space, and can be less accurate when operated at the low end of their force range. Match the press to your actual requirements.
Ignoring Maintenance and Ergonomics
A press that is difficult to use or clean can compromise results. Look for designs where hydraulic components are accessible for service. Consider the ergonomics of loading and unloading the die, especially in a high-throughput setting.
Assuming All Gauges Are Equal
There is a significant difference between a simple, uncalibrated pressure gauge on the hydraulic cylinder and a calibrated digital load cell that measures the true force applied to the die. For analytical work, a calibrated digital readout is always the superior choice for accuracy.
Making the Right Choice for Your Application
Use your primary goal to guide your final decision.
- If your primary focus is routine QC/XRF: Prioritize repeatability. An automatic press with a clear digital force display is the ideal choice to ensure consistency across operators and shifts.
- If your primary focus is R&D or material discovery: Flexibility is key. A high-quality manual press offers the versatility to test a wide range of pressures and sample types at a lower initial cost.
- If your primary focus is high-throughput analysis: Invest in automation. A programmable press that controls force application and release minimizes operator time and guarantees repeatable sample preparation.
By treating the press and die as a single system designed to meet your specific sample needs, you ensure your equipment is a tool for precision, not a source of variability.
Summary Table:
| Consideration | Key Points |
|---|---|
| Force Capacity | Match tonnage to die diameter and required pressure; avoid oversizing for precision. |
| Physical Dimensions | Ensure platen diameter and daylight accommodate die set for easy loading/unloading. |
| Force Gauge | Use calibrated digital load cells for accuracy and repeatability in sample preparation. |
| Automation | Choose manual for flexibility or automatic for consistency in QC, R&D, or high-throughput labs. |
| Application Needs | Consider temperature control, maintenance, and ergonomics based on specific lab requirements. |
