At its core, a lab hydraulic press generates immense force by using an incompressible fluid to multiply a small, manageable input force into a massive output force. This is achieved by exploiting the relationship between pressure, force, and area, allowing a simple hand pump to exert tons of pressure.
The fundamental principle is Pascal's Law, which states that pressure applied to an enclosed fluid is transmitted equally in all directions. By using two pistons of different sizes, a hydraulic press converts this constant pressure into a multiplied output force.
The Core Principle: Pascal's Law Explained
A hydraulic press operates on a simple yet powerful law of physics discovered by Blaise Pascal in the 17th century.
What is Pascal's Law?
Pascal's Law dictates that when you apply pressure to a fluid in a sealed container, that pressure is distributed instantly and uniformly throughout the entire fluid.
Think of squeezing a sealed water bottle. The pressure you apply with your hand is felt equally by every part of the container's inner wall.
The Critical Role of the Fluid
This principle only works effectively with an incompressible fluid, typically a specialized hydraulic oil.
Unlike a gas, which can be easily squashed, a liquid maintains a near-constant volume under pressure. This ensures that the force you apply isn't wasted on compressing the fluid itself, but is instead transmitted directly through it.
How Force is Multiplied in Practice
The "magic" of the hydraulic press lies in its two-piston mechanical design, which translates Pascal's Law into a practical force multiplier.

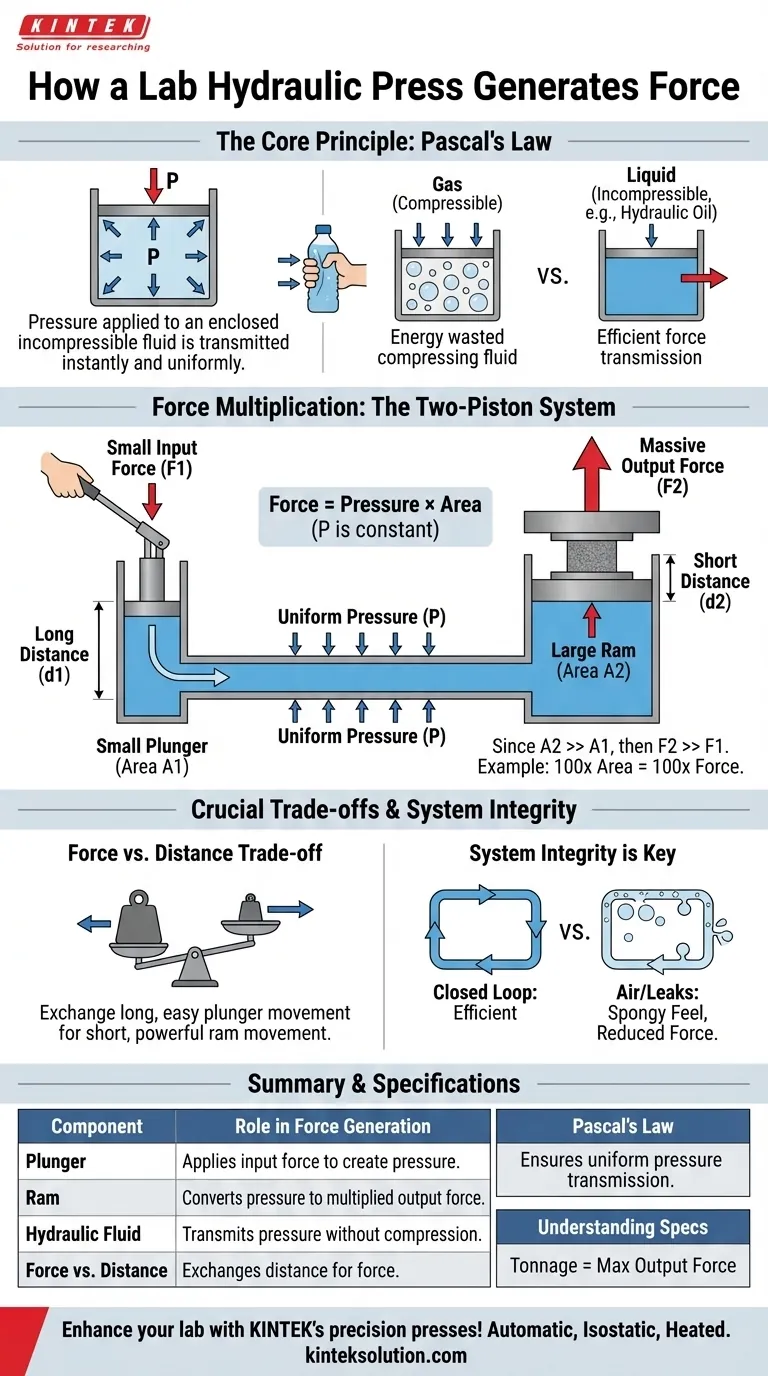

The Two-Piston System
Every hydraulic press has two interconnected cylinders, each with a piston. One cylinder is narrow and contains a small piston (the plunger), while the other is wide and contains a much larger piston (the ram).
Applying the Input Force
When an operator pumps the handle of the press, they apply a small mechanical force to the plunger, pushing it down into the narrow cylinder.
Pressure Transmission
This action creates pressure in the hydraulic fluid. According to Pascal's Law, this exact pressure is transmitted undiminished through the fluid to the ram in the wider cylinder.
Generating the Output Force
Here is the key to force multiplication. The relationship is Force = Pressure × Area.
Since the pressure is the same on both pistons, the force exerted by each piston is directly proportional to its surface area. Because the ram has a much larger area than the plunger, it exerts a proportionally larger force.
For example, if the ram has 100 times the surface area of the plunger, the input force will be multiplied by 100. A 100-pound force on the plunger generates a 10,000-pound force at the ram.
Understanding the Trade-offs
This force multiplication does not create energy from nothing. It comes with a necessary trade-off, governed by the laws of physics.
The Force vs. Distance Exchange
The primary trade-off is force for distance.
To move the large ram a small distance (e.g., 1 inch), the small plunger must be pumped through a much greater distance (e.g., 100 inches). You are exchanging a long, easy movement for a short, powerful one.
System Integrity is Crucial
The system's performance is entirely dependent on it being a closed loop. Any air bubbles in the fluid will compress, absorbing energy and drastically reducing the press's efficiency and force output.
Similarly, any leaks in the seals will cause a loss of fluid and pressure, preventing the system from building or holding its target force.
Making Sense of Press Specifications
Understanding this principle helps you interpret manufacturer specifications and troubleshoot issues.
- If your primary focus is choosing a press for an application: The 'tonnage' (e.g., 15 Ton, 25 Ton) rating refers to the maximum output force generated by the large ram, which determines the press's compressive power.
- If your primary focus is troubleshooting a poorly performing press: A spongy feel or inability to reach full pressure is almost always caused by air in the hydraulic lines or a low fluid level, which compromises the system's incompressibility.
- If your primary focus is understanding the physics: Remember that a hydraulic press doesn't create energy, but rather trades a long travel distance of low force for a short travel distance of high force.
By leveraging a basic law of fluid dynamics, the hydraulic press stands as a perfect example of elegant engineering.
Summary Table:
| Component | Role in Force Generation |
|---|---|
| Pascal's Law | Ensures uniform pressure transmission in the hydraulic fluid |
| Plunger (Small Piston) | Applies input force to create pressure in the fluid |
| Ram (Large Piston) | Converts pressure into multiplied output force |
| Hydraulic Fluid | Transmits pressure without compression for efficient force transfer |
| Force vs. Distance Trade-off | Exchanges long plunger movement for short, powerful ram movement |
