The fundamental difference between Warm Isostatic Pressing (WIP) and Cold Isostatic Pressing (CIP) is the operational temperature. CIP consolidates powdered materials at room temperature using a liquid medium, while WIP employs a heated liquid to form materials that are brittle or cannot be effectively compacted when cold.
While both processes achieve uniform density by applying pressure from all directions, the choice between them is not about superiority. It is dictated entirely by the material's intrinsic properties and its response to pressure at different temperatures.
The Shared Foundation: Isostatic Pressure
Before comparing WIP and CIP, it is crucial to understand the principle they share: isostatic pressure. This is the core concept that sets them apart from other pressing methods.
How Isostatic Pressure Works
Unlike traditional uniaxial pressing, which applies force from a single direction, isostatic pressing applies equal pressure from all directions simultaneously.
The process involves placing a powdered material into a sealed, flexible mold. This mold is then submerged in a fluid within a pressure vessel. As the fluid is pressurized, it exerts uniform force on every surface of the mold, compacting the powder into a solid, homogeneous mass.
The Key Outcome: A "Green" Part
Both CIP and WIP produce what is known as a "green" part. This is a pre-sintered object with sufficient structural integrity—or green strength—to be handled, machined, or moved to the next manufacturing step.
This green part has a highly uniform density, which minimizes distortion and ensures predictable shrinkage during the final sintering phase, where the part is heated to achieve its final strength and properties.
Cold Isostatic Pressing (CIP): The Industry Standard
CIP is the most common form of isostatic pressing, valued for its efficiency and simplicity in consolidating a wide range of powdered materials.
The Process at Room Temperature
CIP operates at or near ambient temperature (typically below 93°C / 200°F). Because there is no heating element, the process is relatively fast and energy-efficient.
There are two primary methods:
- Wet-Bag CIP: The sealed mold is directly immersed in the pressurizing fluid. This method is highly versatile and ideal for prototypes, small production runs, and very large or complex parts.
- Dry-Bag CIP: The flexible mold is integrated into the pressure vessel itself. Powder is loaded, pressed, and ejected in a much faster, automated cycle, making it suitable for high-volume production.
When to Use CIP
CIP is the default choice for consolidating standard powders like metals and ceramics. It excels at producing complex shapes with uniform density, such as components for the aerospace, medical, and automotive industries.
Warm Isostatic Pressing (WIP): The Specialized Solution
WIP is a modification of the isostatic pressing process designed to overcome the limitations of specific materials that do not respond well to cold compaction.
The Addition of Heat
The defining feature of WIP is the use of a heated liquid as the pressure medium. The entire system—vessel, fluid, and mold—is brought to a specific, controlled elevated temperature during pressurization.
Why Heat is Necessary
Some advanced materials, particularly certain polymers or brittle powders, can crack or fail to compact properly under high pressure at room temperature.
Heating the material makes it more ductile and pliable. This added malleability allows the powder particles to deform and lock together without fracturing, resulting in a solid, defect-free green part that would be impossible to create with CIP.
Understanding the Trade-offs
Choosing between CIP and WIP involves a clear trade-off between material capability and process complexity.
Cost and Simplicity
CIP holds a distinct advantage in cost and simplicity. The equipment is less complex, cycle times are generally shorter, and energy consumption is lower because no heating or cooling phase is required.
Material Capability
WIP's advantage is its ability to process "difficult" materials. It expands the range of powders that can be successfully consolidated, unlocking applications for materials that would otherwise be unsuitable for this forming method.
Process Complexity
WIP introduces significant complexity. The need to uniformly heat and cool a high-pressure vessel adds time, energy cost, and technical challenges to the manufacturing cycle. This makes it a specialized process used only when absolutely necessary.
Making the Right Choice for Your Material
Your material's behavior under pressure is the sole factor that determines which process is appropriate.
- If your primary focus is cost-effective consolidation of standard metal or ceramic powders: CIP is the proven, efficient, and default choice.
- If you are working with a brittle polymer or advanced powder that fractures during cold compaction: WIP is the necessary solution to achieve successful formation by increasing material ductility.
- If your goal is to produce large or complex shapes with high green strength and uniform density: Both processes deliver this outcome, but you should always start with CIP unless the material’s properties demand heat.
Ultimately, understanding this temperature-driven difference empowers you to select the right consolidation path based on your material's fundamental properties, not just the process itself.
Summary Table:
| Feature | Cold Isostatic Pressing (CIP) | Warm Isostatic Pressing (WIP) |
|---|---|---|
| Temperature | Room temperature (<93°C / 200°F) | Elevated temperature with heated liquid |
| Material Suitability | Standard metals and ceramics | Brittle or advanced materials (e.g., polymers) |
| Process Complexity | Lower cost, faster, simpler | Higher cost, more complex due to heating |
| Key Advantage | Uniform density, efficient for common powders | Enables compaction of difficult materials |
Need expert guidance on selecting the right lab press for your materials? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, tailored to meet your laboratory's unique needs. Our solutions ensure precise, uniform compaction for enhanced research and production outcomes. Contact us today to discuss how we can support your projects with reliable, high-performance equipment!

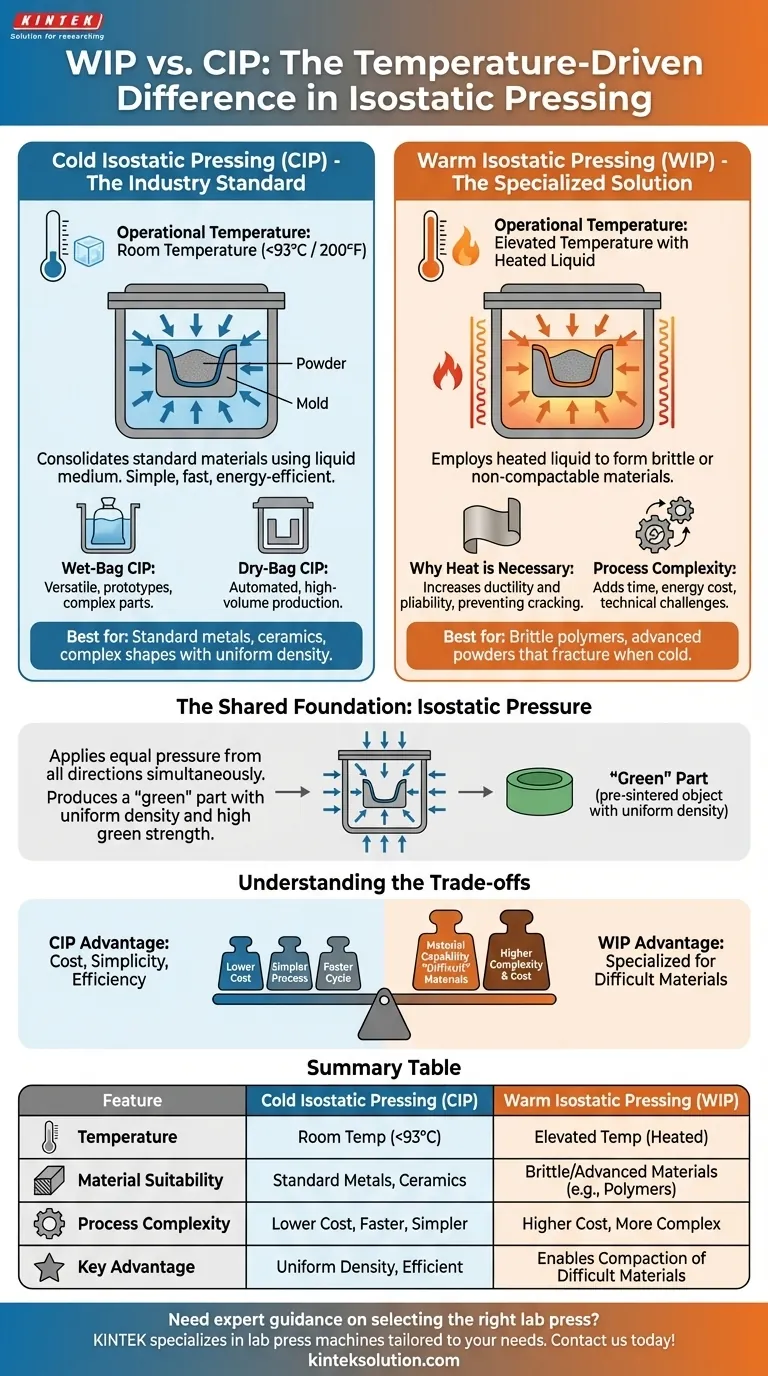

Visual Guide
