In applications demanding significant and controllable force, hydraulic presses offer a clear set of advantages over their mechanical counterparts. They excel by providing full, constant tonnage throughout the entire stroke, offering unmatched precision through simple valve controls, and delivering superior versatility for a wide range of forming, molding, and assembly tasks.
The core difference is not simply about force, but the quality and control of that force. A hydraulic press's defining advantage is its ability to deliver full, consistent pressure at any point in its stroke, a capability mechanical presses cannot replicate.
The Core Advantage: Constant Force Throughout the Stroke
A mechanical press delivers its maximum rated tonnage only at the very bottom of its stroke. A hydraulic press, by contrast, delivers its full rated tonnage at any point, from the top of the stroke to the bottom.
How Hydraulic Force Works
A hydraulic press operates on the principle of fluid dynamics. An electric motor drives a pump that moves hydraulic fluid into a cylinder, pushing against a piston. This generates a controlled, constant pressure.
Because the force is generated by static fluid pressure, it remains consistent regardless of the ram's position. This is critical for operations like deep drawing, where consistent force is needed to form the part without tearing or wrinkling.
The Mechanical Press Limitation
A mechanical press uses a flywheel, clutch, and crank mechanism. This design means its force profile follows a sine curve, peaking only at the bottom dead center of the stroke. If the work is performed higher up in the stroke, the available force is significantly lower.
Unmatched Control and Flexibility
The simple, valve-based control system of a hydraulic press provides a level of precision that is difficult and expensive to achieve with a mechanical system.
Precision Control Over Pressure and Speed
Operators can precisely set and adjust the pressure, speed, and ram position. This fine-tuning is essential for forming intricate shapes, working with sensitive materials, or performing precise assembly operations like pressing bearings.
Adjustable Stroke Length and Dwell Time
The stroke length is fully adjustable. The ram can be set to reverse on either a pressure setting or a position setting. Critically, a hydraulic press can "dwell" or hold full pressure at the bottom of the stroke for a specified time, a necessary feature for many plastic or rubber compression molding applications.
Versatility Across Applications
This inherent control makes hydraulic presses exceptionally versatile. The same press can be used for forging heavy-duty automobile parts, compacting powders, forming complex aerospace components, or performing delicate assembly tasks simply by adjusting its settings.
Understanding the Trade-offs
No single technology is universally superior. The choice between a hydraulic and mechanical press depends entirely on the application's primary requirement.
Speed vs. Control
The primary trade-off is speed. Mechanical presses are significantly faster, capable of achieving very high strokes-per-minute rates. This makes them the ideal choice for high-volume, shallow stamping operations where raw speed is the most important metric.
Complexity and Cost
While a hydraulic press has a simpler mechanical design, its hydraulic system (pumps, valves, hoses) introduces its own maintenance requirements. However, the force-on-demand nature of modern hydraulic systems can make them more energy-efficient for applications with long idle times.
Inherent Safety and Reliability
The design of a hydraulic system provides built-in safety mechanisms that protect both the operator and the machine itself.
Built-in Overload Protection
A hydraulic press is protected by a pressure relief valve. If the force required exceeds the preset limit, the valve opens, preventing any damage to the press or the tooling. A mechanical press subjected to a severe overload can suffer catastrophic failure, breaking the frame or crankshaft.
Simplified Design and Longevity
With fewer moving parts compared to the complex gearing and clutch of a mechanical press, a hydraulic press often requires less maintenance and offers a longer operational life. The design is compact and robust, reducing the risk of sudden mechanical failure.
Making the Right Choice for Your Goal
Ultimately, the correct choice is dictated by your specific manufacturing goal.
- If your primary focus is high-volume, repetitive stamping: A mechanical press is likely the better choice due to its superior speed.
- If your primary focus is deep drawing, forming complex parts, or assembly: A hydraulic press is the definitive choice for its constant force and precision control.
- If your primary focus is operational safety and tooling protection: The built-in overload protection of a hydraulic press provides a significant advantage.
- If your primary focus is application versatility: The easily adjustable nature of a hydraulic press allows it to handle a much wider range of jobs.
Choosing the right press is about aligning the machine's fundamental capabilities with the demands of your application.
Summary Table:
| Advantage | Description |
|---|---|
| Constant Force | Delivers full tonnage throughout the entire stroke, ideal for deep drawing and consistent pressure applications. |
| Precision Control | Allows precise adjustment of pressure, speed, and position via simple valve systems for intricate tasks. |
| Versatility | Adaptable to various applications like forging, powder compacting, and assembly with adjustable stroke and dwell time. |
| Safety | Built-in overload protection prevents damage to machine and tooling, enhancing operational reliability. |
| Longevity | Simplified design with fewer moving parts reduces maintenance and extends operational life. |

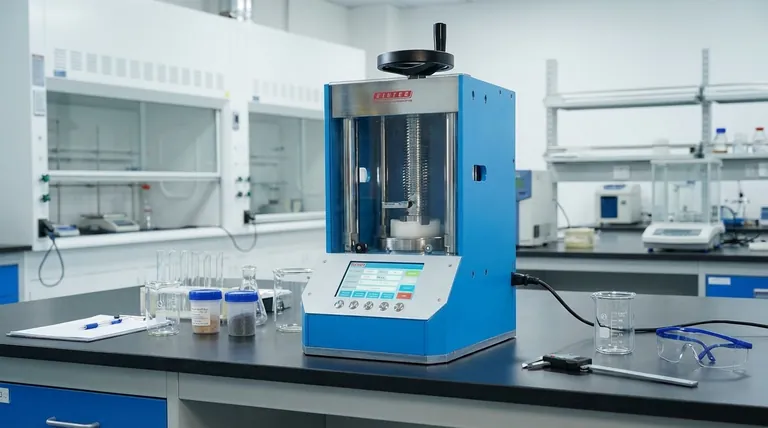

Ready to enhance your lab's capabilities with precise and versatile press solutions? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to meet your specific needs for forming, molding, and assembly. Our hydraulic presses deliver unmatched control, safety, and efficiency—perfect for laboratories seeking reliable performance. Contact us today to discuss how we can support your projects and provide tailored solutions!
