What Are The Advantages Of Using Pressed Pellets For Xrf Analysis? Achieve Accurate And Reliable Sample Preparation

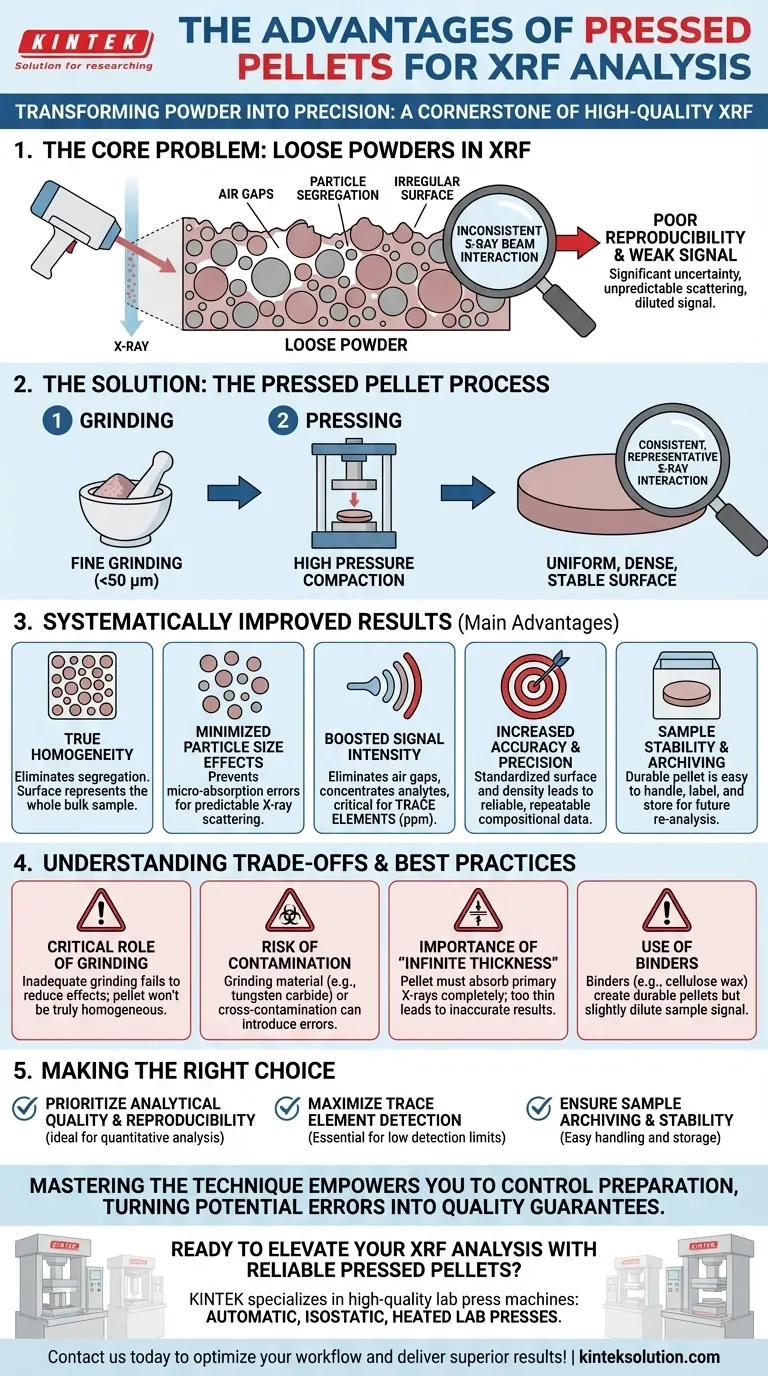

Pressed pellets are a cornerstone of high-quality XRF analysis because they transform a raw, often inconsistent powder into a standardized, uniform sample. This preparation method directly addresses the most common sources of analytical error by improving sample homogeneity, minimizing particle size effects, and creating a stable, dense surface for measurement, which leads to significantly improved precision and accuracy.

Creating a pressed pellet is not just about convenience; it is a critical step that mitigates the primary physical sources of error in X-ray fluorescence. By standardizing the sample's surface and density, you ensure the analytical results are a true and repeatable reflection of its chemical composition.

The Core Problem: Why Sample Surface Matters in XRF

X-ray Fluorescence (XRF) is fundamentally a surface-sensitive technique. The results are entirely dependent on the material that the primary X-ray beam interacts with, making proper sample preparation non-negotiable for accurate analysis.

The Challenge of Loose Powders

Analyzing a sample as a loose powder introduces significant uncertainty. The X-ray beam interacts with an irregular surface full of air gaps and particles of varying sizes and distributions.

This creates several problems, including particle segregation where heavier or denser particles settle, and void spaces that dilute the sample and weaken the fluorescent signal. The result is often poor reproducibility.

The X-ray Beam's Perspective

The incident X-ray beam only penetrates a shallow depth into the sample. If the surface layer it analyzes is not a perfect representation of the entire bulk sample, the final compositional data will be incorrect. A pressed pellet ensures the analyzed surface is a statistically valid average of the whole.

How Pressed Pellets Systematically Improve Results

The process of grinding and pressing a sample into a solid disc is designed to systematically eliminate the physical variables that compromise XRF data quality.

Achieving True Homogeneity

Pressing a finely ground powder under high pressure creates a solid pellet with a uniform density. This process locks particles into place, preventing segregation and ensuring that any part of the pellet's surface is representative of the whole.

Eliminating Particle Size Effects

Inconsistent particle size is a major source of error. Large or irregularly shaped crystals can cause X-rays to scatter unpredictably or be absorbed differently, skewing the results.

Grinding the sample to a fine powder, ideally less than 50 micrometers, before pressing ensures that these micro-absorption effects are minimized. A smooth, flat pellet surface provides a consistent and predictable interaction with the X-ray beam.

Boosting Signal Intensity and Sensitivity

Compressing powder into a solid pellet eliminates the air gaps present in a loose sample. This concentrates the analyte atoms in the path of the X-ray beam, leading to a stronger fluorescent signal (higher intensity).

This effect is especially critical for trace element analysis, where maximizing the signal is necessary to achieve low detection limits in the parts-per-million (ppm) range.

Understanding the Trade-offs and Best Practices

While highly effective, the quality of a pressed pellet is entirely dependent on the process used to create it. Awareness of potential pitfalls is key to achieving reliable results.

The Critical Role of Grinding

The final pellet is only as good as the initial powder. Inadequate grinding will fail to reduce particle size effects, and the resulting pellet will not be truly homogeneous. Consistent and sufficient grinding is the most important prerequisite.

The Risk of Contamination

The primary risk of contamination occurs during the grinding stage. Material from the grinding vessel (e.g., tungsten carbide, agate) can be introduced into the sample, leading to artificially high readings for those elements. Cross-contamination from previously ground samples is also a risk if equipment is not meticulously cleaned.

The Importance of "Infinite Thickness"

For accurate quantitative analysis, the pellet must be "infinitely thick" to the X-ray beam. This means it must be thick enough that the primary X-rays are completely absorbed by the sample. If the pellet is too thin, the X-rays may pass through, and the detector will not receive the full fluorescent signal, leading to inaccurate results.

The Use of Binders

Some materials do not bind well under pressure and will produce a fragile pellet. In these cases, a binding agent (like a cellulose wax) is mixed with the sample powder. While this creates a durable pellet, it also dilutes the sample, which can slightly reduce signal intensities. This trade-off must be accounted for in the analytical method.

Making the Right Choice for Your Analysis

The decision to use pressed pellets is a decision to prioritize analytical quality. This method is a standard for good reason, providing a fast, cost-effective, and highly reliable way to prepare samples for XRF.

If your primary focus is high accuracy and reproducibility: Pressed pellets are the ideal choice for quantitative analysis, as they directly minimize the physical sources of measurement error.
If your primary focus is trace element detection: The increased sample density and resulting signal boost provided by a pressed pellet are essential for achieving the lowest possible detection limits.
If your primary focus is sample archiving and stability: A solid, durable pellet is easy to handle, label, and store for future re-analysis, unlike a loose powder which can be easily contaminated or spilled.

Ultimately, mastering the pressed pellet technique empowers you to control your sample preparation, turning a potential source of error into a guarantee of quality.

Summary Table:

Advantage	Description
Improved Homogeneity	Creates a uniform sample surface, reducing segregation and ensuring representative analysis.
Minimized Particle Size Effects	Grinding to fine powder (<50 μm) prevents micro-absorption errors for consistent X-ray interaction.
Enhanced Signal Intensity	Eliminates air gaps, concentrating analytes for stronger signals and better trace element detection.
Increased Accuracy and Precision	Standardizes density and surface, leading to reliable, repeatable compositional data.
Sample Stability	Provides a durable, archivable pellet for easy handling and future re-analysis.
