At its core, the difference between a manual and an automatic hydraulic press is the source of power and control. A manual press relies on a hand-operated lever or pump to generate force, requiring direct physical effort from the operator. An automatic press uses an electric motor and electronic controls to apply pressure autonomously, delivering precise and repeatable force without manual intervention.
The decision between a manual and automatic press is not about which is universally "better," but which tool aligns with your specific needs. It represents a fundamental trade-off between a lower initial cost and the long-term benefits of operational consistency and efficiency.
The Fundamental Difference: How Force is Applied
The most significant distinction lies in the mechanism used to build and deliver hydraulic pressure. This core difference dictates vriend's else about their performance and ideal use case.
Manual Presses: Direct Physical Control
A manual hydraulic press operates using a simple, robust system. The operator pumps a lever, which moves a piston inside a cylinder filled with hydraulic oil.
This action builds pressure within the sealed system, exerting a powerful compressive force on the sample. The final pressure is entirely dependent on the physical effort and technique of the person operating the press.
Automatic Presses: Programmable Electronic Control
An automatic press replaces the hand lever with an electric pump and sophisticated electronic controls. The user programs the desired force, and the machine handles the entire process.
An internal motor drives the hydraulic pump to reach the target pressure with high accuracy. This system can often hold a specific pressure for a set duration or follow complex pressure cycles, all without operator oversight.
The Impact on Results: Consistency and Repeatability
For scientific and industrial applications, the reliability of results is paramount. The method of force application directly impacts the consistency of your output.
The Human Factor in Manual Operation
Because manual presses depend on an operator's physical input, they are inherently prone to variation. It is challenging for a person to apply the exact same force profile across multiple samples.
This inconsistency can be a significant variable, especially in lab environments like preparing KBr pellets for FTIR or sample pellets for XRF, where uniform density is critical for accurate analysis.
The Precision of Automated Systems
Automatic presses eliminate the human factor. Once a pressure value is programmed, the machine applies that exact force every single time.
This high repeatability is essential for high-throughput laboratories or quality control processes where results must be directly comparable. It ensures that any variation in outcomes is due to the sample itself, not the preparation method.
Understanding the Trade-offs
Choosing a press requires an objective look at the trade-offs between cost, performance, and operational demands.
Initial Investment and Long-Term Costs
Manual presses have a significantly lower upfront cost, making them an affordable and effective choice for labs with infrequent needs or tight budgets.
Automatic presses represent a larger capital investment. However, they can reduce long-term costs by minimizing operator time, increasing sample throughput, and reducing the waste associated with improperly prepared samples.
Operational Efficiency
A manual press requires the constant, hands-on attention of a technician for each sample. This is perfectly suitable for low-volume work.
An automatic press operates autonomously after being programmed. This "set-and-forget" capability frees up skilled technicians to perform other critical tasks, dramatically increasing overall lab efficiency.
Skill and Training
Operating a manual press effectively requires a degree of technique and "feel" to achieve consistent results. In contrast, an automatic press requires initial familiarity with its programming interface but makes it easier for any user to achieve precise outcomes.
Making the Right Choice for Your Goal
To select the correct press, first define your primary objective.
- If your primary focus is low cost and infrequent use: A manual press is the most cost-effective solution, providing powerful force for basic applications.
- If your primary focus is high throughput and data consistency: An automatic press is a necessary investment for reliable, repeatable results in a busy lab.
- If your primary focus is process automation and minimizing human error: The programmability and precision of an automatic press are indispensable.
- If your primary focus is simple compression without stringent precision: A manual press is a durable and straightforward tool for the job.
Ultimately, selecting the right hydraulic press means matching the tool's capabilities to your specific goals for precision, volume, and budget.

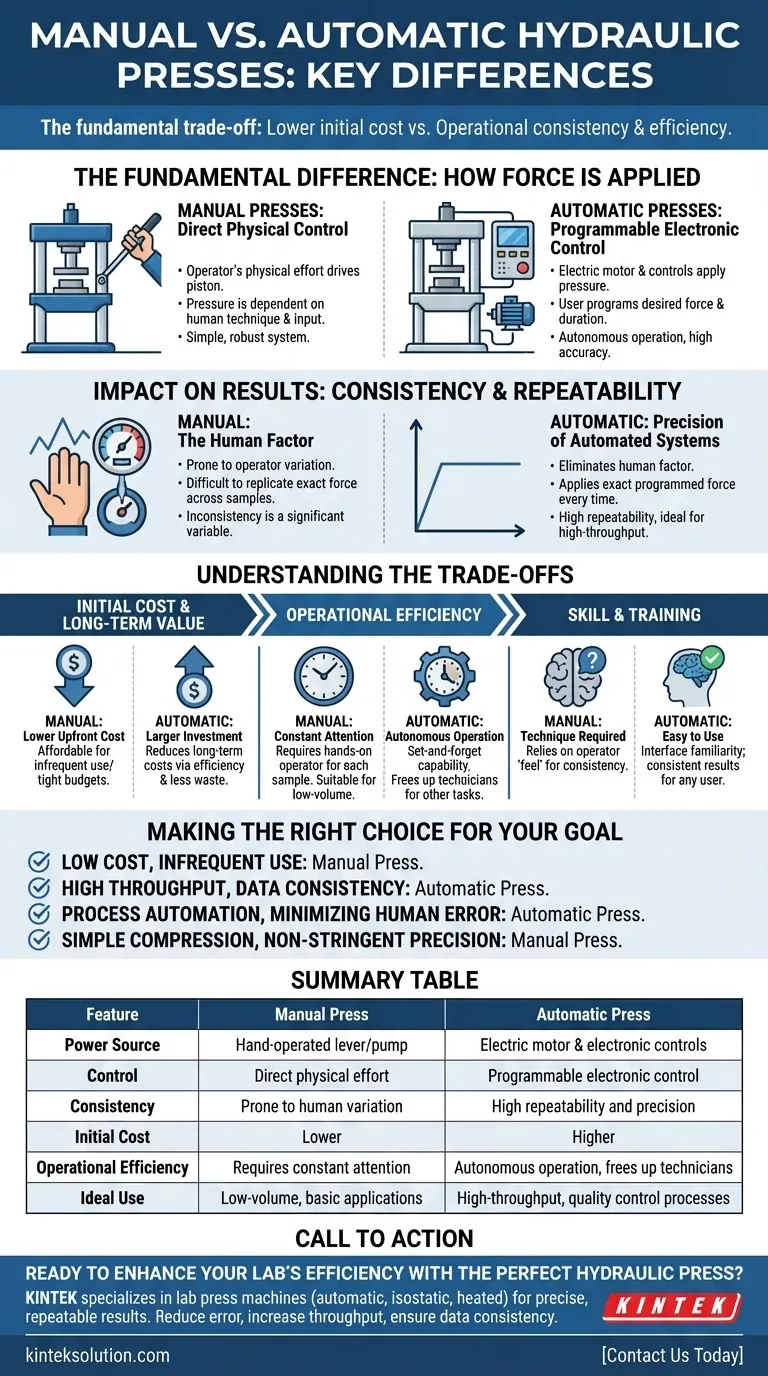

Summary Table:
| Feature | Manual Press | Automatic Press |
|---|---|---|
| Power Source | Hand-operated lever/pump | Electric motor and electronic controls |
| Control | Direct physical effort | Programmable electronic control |
| Consistency | Prone to human variation | High repeatability and precision |
| Initial Cost | Lower | Higher |
| Operational Efficiency | Requires constant attention | Autonomous operation, frees up technicians |
| Ideal Use | Low-volume, basic applications | High-throughput, quality control processes |
