Fundamentally, Warm Isostatic Presses (WIP) are categorized into two primary types based on the medium used to transfer pressure and heat. These are Liquid Warm Isostatic Presses, which operate up to 250°C, and Gas Warm Isostatic Presses, which can achieve significantly higher temperatures up to 500°C. The choice between them is dictated by the specific temperature requirements of the material being processed.
Your core decision is not simply about the type of press, but about the thermal properties of your material. The goal is to select a system that provides the necessary temperature to achieve desired consolidation and material properties without entering the more complex and costly realm of Hot Isostatic Pressing (HIP).
The Role of Warm Isostatic Pressing
Warm Isostatic Pressing occupies a critical space between Cold Isostatic Pressing (CIP) and Hot Isostatic Pressing (HIP). It is designed for materials that require elevated temperatures to form correctly but do not need the extreme heat and pressure of a full HIP cycle.
The Core Principle: Uniform Pressure at Elevated Temperatures
WIP applies pressure to a component from all directions simultaneously using a heated liquid or gas. This isostatic pressure ensures uniform densification, eliminating internal voids and producing a highly consistent final part. The added heat softens binders or improves the ductility of the powder, enhancing consolidation.
Key Applications and Materials
This process is invaluable for materials that are difficult to form at room temperature. It is widely adopted in industries like aerospace, automotive, and high-end manufacturing.
Common applications include the production of:
- Advanced ceramics
- Powder metallurgy components
- High-density graphite
- Near-net shape parts
- Porous materials and filters
The Two Core Types of WIP Systems
The fundamental difference between WIP systems lies in the pressurization medium, which directly impacts the operational temperature range and suitability for different materials.
Liquid Warm Isostatic Presses
These systems use a medium like specialized oil or water heated to temperatures up to 250°C.
Heating is typically managed by a heater in the fluid supply tank or, for more precise control, with a heating element located inside the high-pressure vessel itself. This method is ideal for processing polymers or compacting powders with temperature-sensitive binders.
Gas Warm Isostatic Presses
For applications requiring higher temperatures, gas-based systems are used. They employ an inert gas to transfer pressure and can reach temperatures of up to 500°C.
This higher thermal capability makes them suitable for consolidating certain metal powders and advanced ceramic materials that require more energy for effective densification than liquid systems can provide.
Understanding the Trade-offs
Choosing a WIP system requires understanding its advantages and limitations compared to other pressing methods.
WIP vs. Cold Isostatic Pressing (CIP)
The primary advantage of WIP over CIP is the use of heat. This allows for better removal of trapped gases and impurities from the powder, leading to superior material properties and density.
However, this comes at the cost of increased complexity. CIP systems, which operate at room temperature and often use either "Wet Bag" or "Dry Bag" configurations, are mechanically simpler and less expensive to operate.
The Critical Factor: Temperature Control
The defining feature of WIP is its thermal component. Precise and uniform temperature control is essential for repeatable results. Systems with internal heaters offer the most accurate control, which is critical for materials with a narrow processing window.
Process Complexity and Cost
Introducing a heating system inherently makes a WIP unit more complex and costly than a CIP unit. The engineering required to manage both high pressure and elevated temperature safely adds to the initial investment and operational overhead.
Making the Right Choice for Your Application
Your decision should be guided by a clear understanding of your material's processing requirements and your final component goals.
- If your primary focus is compacting powders with organic binders or processing polymers: A Liquid WIP system is the most effective and economical choice, operating comfortably within the required temperature range.
- If your primary focus is densifying specific metal powders or advanced ceramics that need more heat: A Gas WIP system provides the necessary temperature range below the threshold of full Hot Isostatic Pressing.
- If your primary focus is simple consolidation at room temperature without specific thermal needs: You should first evaluate if a less complex Cold Isostatic Pressing (CIP) system is sufficient for your goal.
Ultimately, selecting the correct isostatic pressing method is about matching the equipment's capability to your material's specific needs.
Summary Table:
| Type | Medium | Max Temperature | Key Applications |
|---|---|---|---|
| Liquid WIP | Oil or Water | Up to 250°C | Polymers, powders with binders |
| Gas WIP | Inert Gas | Up to 500°C | Metal powders, advanced ceramics |
Upgrade your laboratory efficiency with KINTEK's precision lab press machines! Whether you need an automatic lab press, isostatic press, or heated lab press, we deliver reliable solutions for uniform densification and superior material consolidation. Contact us today via our contact form to discuss how our equipment can meet your specific needs in ceramics, metallurgy, and more!

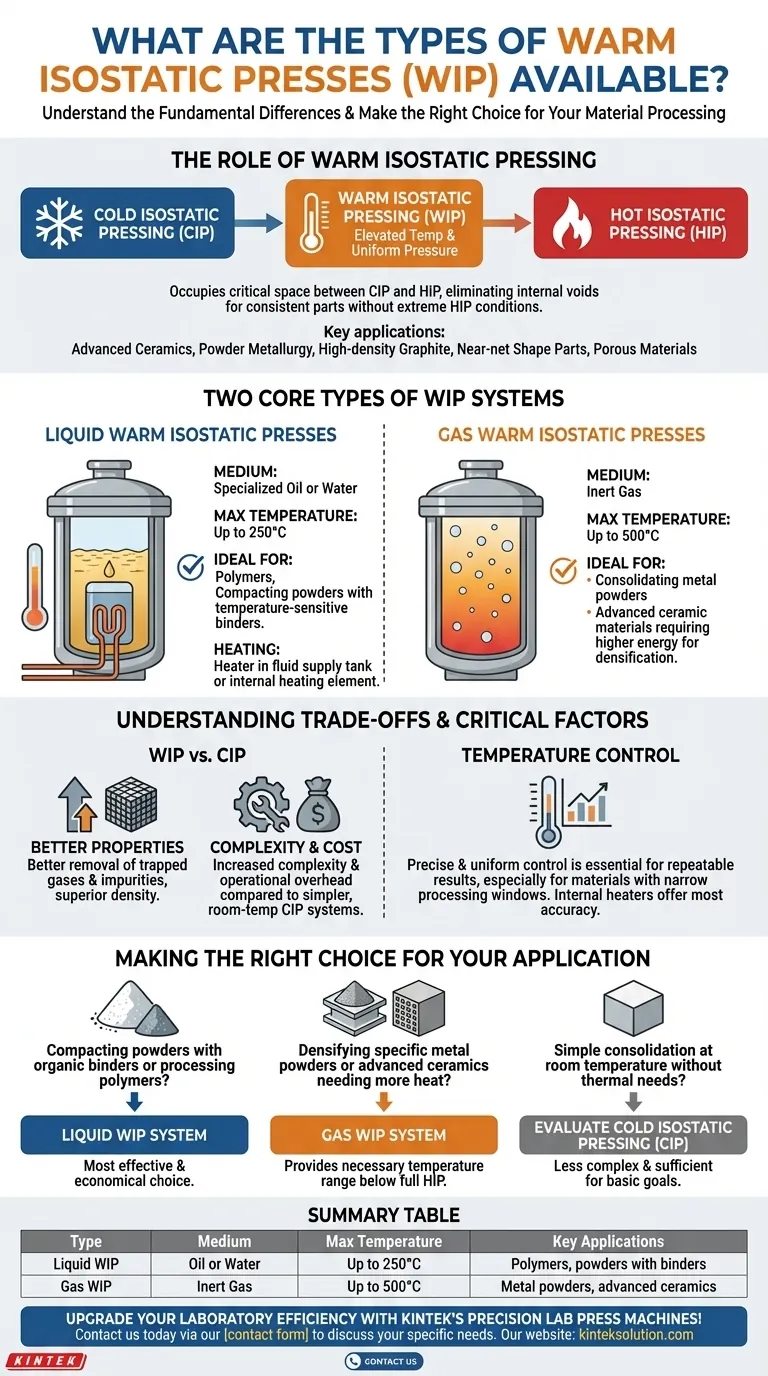

Visual Guide
