At its core, a standard laboratory press is equipped with a specific set of components designed for controlled heating and compression tasks. The typical configuration includes heated electric platens, a precise digital temperature controller, a hydraulic system to generate force, and a two-position ram for controlled closing speeds.
While the core components of a laboratory press are standardized, its true value is determined by the specific capabilities of those components. The key is to match the press's tonnage, temperature range, and platen size to the unique demands of your material and process.

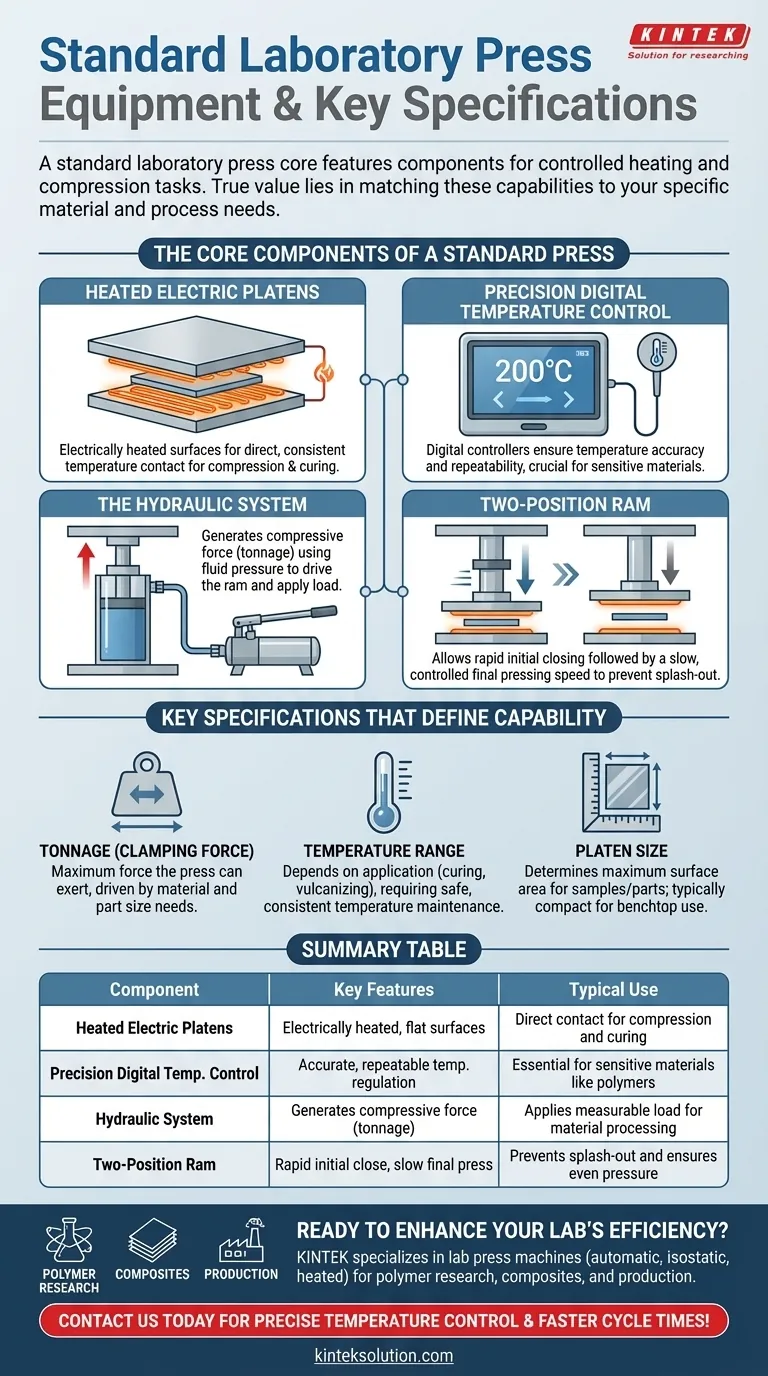

The Core Components of a Standard Press
Every laboratory press is built around a few essential systems that work together. Understanding the role of each component is the first step in evaluating whether a particular press meets your needs.
Heated Electric Platens
The platens are the flat, heated surfaces that make direct contact with your material or mold. In a standard press, these are electrically heated for clean, consistent, and easily controlled temperature. They serve as the primary work surface for compression and curing.
Precision Digital Temperature Control
Modern presses have moved beyond analog dials to precise digital controllers. This is a critical standard feature because it ensures temperature accuracy and repeatability from one cycle to the next, which is essential for processing sensitive materials like polymers, resins, and pharmaceuticals.
The Hydraulic System
The hydraulic system is the heart of the press's power, responsible for generating the compressive force, or tonnage. This system uses fluid pressure to drive the ram and apply a specific, measurable load onto the platens and your material.
Two-Position Ram
A two-position ram is a subtle but important feature included in many standard presses. It allows for a rapid initial closing of the platens to save time, followed by a slower, controlled speed during the final pressing stage. This prevents material splash-out and ensures even pressure application.
Key Specifications That Define Capability
While the components above are standard, their specifications are not. These variables are what differentiate one press from another and are the most important factors in your selection process.
Tonnage (Clamping Force)
Tonnage is the maximum force the press can exert. The required tonnage is dictated entirely by your material and the size of the part you are forming. A press for light-duty polymer research will require far less tonnage than one used for compressing dense ceramics or composites.
Temperature Range
The required temperature range depends entirely on your application. Curing thermoplastic resins, vulcanizing rubber, or bonding composites all happen at different, specific temperatures. You must select a press with platens that can safely and consistently reach and maintain your target processing temperature.
Platen Size
The platen size determines the maximum surface area of the sample or part you can produce. Standard presses are typically designed for benchtop use to save lab space, so platen sizes are often compact. Ensure the dimensions are adequate for your molds or material samples.
Making the Right Choice for Your Application
Selecting the right press means aligning its specifications with your primary goal.
- If your primary focus is polymer or rubber research: Prioritize a press with highly accurate digital temperature control and a sufficient temperature range for your specific materials.
- If your primary focus is composites and laminating: Ensure the platen size is adequate for your layups and that the press delivers enough tonnage to achieve proper consolidation.
- If your primary focus is short-run production or lean manufacturing: Look for a robust, low-maintenance design with features like a two-position ram that can improve cycle times and repeatability.
Understanding these standard features and key variables empowers you to select a press that is not just a piece of equipment, but a precise tool for your specific scientific or manufacturing goal.
Summary Table:
| Component | Key Features | Typical Use |
|---|---|---|
| Heated Electric Platens | Electrically heated, flat surfaces | Direct contact for compression and curing |
| Precision Digital Temperature Control | Accurate, repeatable temperature regulation | Essential for sensitive materials like polymers |
| Hydraulic System | Generates compressive force (tonnage) | Applies measurable load for material processing |
| Two-Position Ram | Rapid initial close, slow final press | Prevents splash-out and ensures even pressure |
