In short, a Liquid Warm Isostatic Press (WIP) is designed to operate at temperatures up to 250°C (482°F). While this defines its upper limit, the true capability of the system lies in its precise control within a specific operational window. Most warm isostatic pressing is conducted at much lower temperatures to achieve optimal powder compaction without introducing the complexities of high-heat processes.
The critical insight is not the maximum temperature a press can reach, but understanding that a Liquid WIP is a specialized tool for precise, lower-temperature densification. The goal is to use the minimum effective temperature required by your material to achieve superior compaction and part performance efficiently.
Understanding the Temperature Spectrum
To effectively use a Liquid WIP, you must understand three distinct temperature ranges: the maximum limit, the typical processing window, and the ambient environment.
Maximum Operating Temperature
The absolute ceiling for a pressing system using a liquid medium (like oil or water) is 250°C (482°F). Pushing beyond this limit is not feasible for liquid-based systems and requires a different technology, such as a Gas WIP.
Typical Processing Range
Most warm isostatic pressing applications are performed between 80°C and 120°C (176°F to 248°F). This moderate temperature range is sufficient to soften binders or polymers within a powder mixture, allowing for significantly better densification and particle rearrangement under pressure.
Ambient Temperature Considerations
The environment surrounding the press also plays a role. The ideal ambient (room) temperature for a Warm Isostatic Press is generally between 10°C and 35°C (50°F to 95°F). Maintaining a stable ambient temperature contributes to the overall efficiency and reliability of the equipment.
The Engineering of Temperature Control
Achieving the desired temperature is only half the battle. The quality of the final component depends heavily on how that temperature is controlled and distributed.
How Temperature is Managed
Temperature control is typically achieved by heating the pressure medium (oil or water) before it enters the high-pressure vessel. This is done using a heater in the supply tank or an inline heat generator. For applications requiring extreme precision, the heating elements may be located inside the pressure cylinder itself.
The Importance of Uniformity
Temperature uniformity is a critical performance metric, measuring the temperature consistency throughout the processing chamber. A common industry standard is a uniformity of ±3°C to ±5°C. Lower variation indicates better performance, as it ensures every part of the component is processed under identical conditions, leading to consistent density and mechanical properties.
Understanding the Trade-offs
Choosing a Liquid WIP involves balancing its capabilities against other technologies and process requirements.
Liquid vs. Gas Systems
The primary limitation of a Liquid WIP is its temperature ceiling. For processes requiring higher heat, a Gas Warm Isostatic Press is the alternative, capable of reaching temperatures up to 500°C (932°F) or more. This makes gas systems suitable for a different class of materials.
The Cost of Higher Temperatures
As the required operating temperature increases, so do the complexity and cost of the equipment and process. Higher temperatures demand more robust seals, specialized fluids, and more sophisticated control systems, all of which contribute to higher capital and operational expenses.
The True Goal of Warm Pressing
The objective is not simply to heat the material, but to achieve optimal compaction. The "right" temperature is the one that allows the powder to flow and densify perfectly under pressure. Exceeding this temperature provides no benefit and can increase costs or even degrade the material.
Making the Right Choice for Your Application
Selecting the correct thermal parameters depends entirely on your material properties and desired outcome.
- If your primary focus is densifying polymers or powders with organic binders: The typical 80-120°C range of a Liquid WIP is often the ideal and most cost-effective solution.
- If your primary focus is processing materials requiring heat above 250°C: A Liquid WIP is not suitable, and you should evaluate a Gas WIP or alternative sintering technologies.
- If your primary focus is achieving maximum part consistency and quality: Prioritize a system with documented, excellent temperature uniformity (e.g., ±3°C or better) over one that simply offers a higher maximum temperature.
By understanding these thermal capabilities, you can select the most efficient and cost-effective process for producing high-quality components.
Summary Table:
| Temperature Aspect | Range | Details |
|---|---|---|
| Maximum Operating Temperature | Up to 250°C (482°F) | Absolute limit for liquid-based systems; beyond this, consider Gas WIP. |
| Typical Processing Range | 80°C to 120°C (176°F to 248°F) | Ideal for softening binders and achieving optimal powder compaction. |
| Ambient Temperature | 10°C to 35°C (50°F to 95°F) | Recommended room temperature for equipment efficiency and reliability. |
| Temperature Uniformity | ±3°C to ±5°C | Critical for consistent part density and mechanical properties. |
Ready to enhance your laboratory's efficiency with precise temperature control? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver superior compaction and part performance for your specific needs. Contact us today to discuss how our solutions can optimize your powder processing and save on costs!

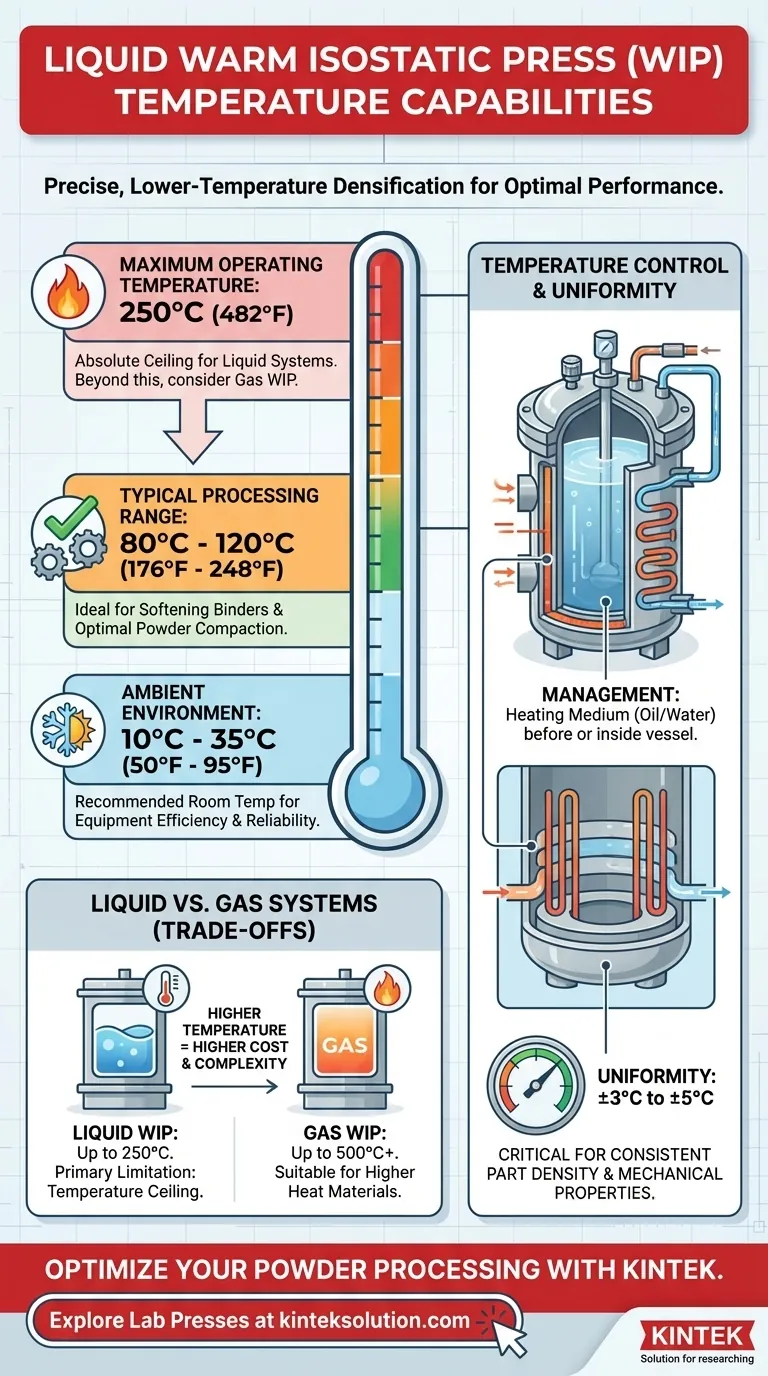

Visual Guide
