Carbon Nanotube NMP Slurry Conductive Paste for Advanced Battery Electrodes
Item Number : FZ33
Price varies based on specs and customizations
- Solid Content
- 5.38 ± 0.20% (TGA)
- Electrode Sheet Volume Resistivity
- 12.5 Ω·cm (Standard ≤ 20 Ω·cm)
- Viscosity
- 3,850 mPa·s (Standard ≤ 12,000 mPa·s)
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Product Overview
This high-purity carbon nanotube NMP slurry provides an advanced conductive additive solution engineered specifically for high-energy-density lithium-ion batteries, supercapacitors, and next-generation electrochemical energy storage systems. By dispersing ultra-fine carbon nanotubes homogeneously within high-grade electronic N-methyl-2-pyrrolidone (NMP), the formulation establishes a continuous, three-dimensional percolation network across active electrode materials. This architecture significantly accelerates electron transport while maintaining structural integrity during extensive charge and discharge cycles.
Designed for pilot lines, commercial cell manufacturing, and rigorous laboratory research, this conductive dispersion eliminates the common challenges of dry-powder agglomeration, dust handling, and inconsistent shearing. It integrates seamlessly into standardized cathode slurry preparation workflows, delivering exceptional rheological stability, superior wetting characteristics, and optimized solids distribution across lithium iron phosphate (LFP), nickel cobalt manganese (NCM), and high-nickel cathode chemistries.
Manufactured under stringent quality control protocols, this suspension guarantees ultra-low magnetic particle contamination and trace heavy metal content through atomic absorption spectroscopy verification. Its consistent batch-to-batch viscosity and high active conductivity ensure reliable coating adhesion, low sheet resistance, and long-term electrochemical stability even under aggressive high-rate and fast-charging operating conditions.
Key Features
- Continuous 3D Conductive Percolation Network: The highly dispersed multi-walled carbon nanotube framework creates an interconnected conductive matrix throughout the electrode, dramatically lowering internal cell impedance and improving active material utilization.
- Superior Low Volume Resistivity: Delivering a measured electrode sheet volume resistivity of just 12.5 Ω·cm (well below the ≤20 Ω·cm quality benchmark), the paste ensures rapid electron transfer across the entire cathode coating layer.
- Optimal Rheological Behavior and Low Viscosity: With an operating viscosity measured at 3,850 mPa·s against a maximum ceiling of 12,000 mPa·s, the slurry facilitates smooth flowability, rapid degassing, and flawless doctor-blade or slot-die coating without clogging.
- Stringent Metal Contamination Control: Non-detectable magnetic metal levels and strictly suppressed trace metals (Fe at 15.7 ppm, Ni at 8.2 ppm, Co at 8.4 ppm, with Cu and Zn non-detectable) prevent localized micro-shorts and inhibit premature battery self-discharge.
- Precision-Engineered Solid Fraction: Maintains a tightly controlled 5.38% total solid content with an exact 4.30% conductive nanotube fraction and 1.08% tailored dispersant balance, maximizing electrical pathways while minimizing unnecessary non-active mass.
- Excellent NMP Solvent Compatibility: Formulated in an electronic-grade 94.62% NMP carrier, the paste mixes effortlessly with standard PVDF binders and active cathode slurries without phase separation or secondary re-agglomeration.
- Enhanced Mechanical Coating Flexibility: The high-aspect-ratio nanotube scaffolding reinforces active material cohesion and foil adhesion, preventing electrode cracking, delamination, and particle shedding during calendering and cycling.
Applications
| Application | Description | Key Benefit |
|---|---|---|
| High-Nickel NCM/NCA Cathodes | Integration into high-energy NCM (622/811) and NCA cathode slurries to provide long-range electron pathways between micron-scale active particles. | Drastically lowers internal resistance, mitigates capacity degradation at high C-rates, and enhances structural stability during cycling. |
| Lithium Iron Phosphate (LFP) Cells | Blending with low-conductivity LFP particles to bridge isolated grains and compensate for inherent bulk electrical limitations. | Delivers substantial rate-capability gains and thermal resilience while lowering the required total conductive additive percentage. |
| Fast-Charging EV Battery Systems | Utilization in high-power cylindrical, prismatic, and pouch cells engineered for ultra-fast charging protocols (3C to 6C). | Minimizes Joule heating and polarization overpotentials, ensuring safe, rapid charge acceptance without lithium plating. |
| Thick-Electrode High-Capacity Designs | Application in high-mass-loading electrode coatings (>20 mg/cm²) requiring deep electronic conduction through the full thickness profile. | Prevents localized electronic starvation near the current collector, promoting uniform depth-of-discharge and high active material yield. |
| Solid-State Battery Cathode Composites | Formulation into dry-coated or solvent-processed composite cathodes incorporating solid electrolyte particles. | Enhances solid-solid interfacial contact and ensures continuous charge transport pathways despite solid electrolyte grain boundaries. |
| Supercapacitor and Hybrid Storage Systems | Incorporation into high-surface-area activated carbon electrodes and pseudo-capacitive hybrid formulations. | Enhances power density, accelerates ion-coupled electronic response times, and maintains exceptionally low equivalent series resistance (ESR). |
Technical Specifications
| Parameter | Unit | Standard Specification | Measured Value (FZ33) | Test / Detection Method |
|---|---|---|---|---|
| Product Code / Identifier | — | FZ33 | FZ33 | Quality Assurance Tracking |
| Solid Content | % | 5.38 ± 0.20 | 5.38 | Thermogravimetric Analysis (TGA) |
| Conductive Agent (CNT) Content | % | 4.30 ± 0.20 | 4.30 | Formulation Ratio Verification |
| Dispersant Content | % | 1.08 ± 0.20 | 1.08 | Formulation Ratio Verification |
| Solvent (NMP) Content | % | 94.62 ± 0.20 | 94.62 | Formulation Ratio Verification |
| Slurry Viscosity | mPa·s | ≤ 12,000 | 3,850 | DV2T Rotational Viscometer |
| Electrode Sheet Volume Resistivity | Ω·cm | ≤ 20.0 | 12.5 | Four-Probe Method |
| Magnetic Impurities & Free Metals | ppm | ≤ 2.0 | Not Detected (N.D.) | Atomic Absorption Spectroscopy (AAS) |
| Cobalt (Co) Content | ppm | ≤ 30.0 | 8.4 | Atomic Absorption Spectroscopy (AAS) |
| Copper (Cu) Content | ppm | ≤ 5.0 | Not Detected (N.D.) | Atomic Absorption Spectroscopy (AAS) |
| Zinc (Zn) Content | ppm | ≤ 5.0 | Not Detected (N.D.) | Atomic Absorption Spectroscopy (AAS) |
| Iron (Fe) Content | ppm | ≤ 30.0 | 15.7 | Atomic Absorption Spectroscopy (AAS) |
| Nickel (Ni) Content | ppm | ≤ 30.0 | 8.2 | Atomic Absorption Spectroscopy (AAS) |
Why Choose This Product
- Exceptional Batch Reproducibility: High-precision fluidic dispersion processes guarantee stable particle size distribution and rheological uniformity across every production batch, ensuring consistent coating line operations.
- Purity-First Formulation Standards: Rigorous atomic absorption spectroscopy screening ensures non-detectable magnetic particulates and heavy metals, safeguarding cells against internal micro-dendrite formation and thermal runaway.
- Reduced Additive Loading Thresholds: Because the high-aspect-ratio carbon nanotubes form superior percolation networks compared to conventional carbon black, active material loading can be increased to directly boost cell energy density.
- Proven Processability: The pre-dispersed NMP suspension integrates effortlessly into planetary mixers, high-shear homogenizers, and continuous twin-screw compounding lines without demanding secondary de-agglomeration steps.
Contact our technical engineering team today to request comprehensive material safety data, order testing samples, or discuss custom conductive slurry solutions tailored to your cell chemistry requirements.
Trusted by Industry Leaders
REQUEST A QUOTE
Our professional team will reply to you within one business day. Please feel free to contact us!
Related Products
High Purity Single Walled and Multi Walled Carbon Nanotubes for Advanced Battery and Nanotechnology Research
Accelerate energy storage and materials innovation with ultra-pure single-walled and multi-walled carbon nanotubes featuring exceptional electrical conductivity, robust tensile strength up to 800 GPa, and superior thermal transport for high-performance battery anodes, advanced composites, and next-generation nanotechnology research applications today.
Carbon Coated Sodium Vanadium Phosphate Na3V2PO43 Powder Sodium Ion Battery Cathode Material
High purity carbon coated sodium vanadium phosphate Na3V2PO43 cathode powder engineered for advanced sodium ion battery research offering 3N purity uniform 1 to 2 micron particle distribution low impurity levels superior rate capability and exceptional structural stability during cycling
5L Laboratory Slurry Iron Removal Filtration System for Lithium Battery Electrode Production
5L laboratory slurry iron removal filtration system combines vacuum filtration and 8000–10000 gauss magnetic separation for consistent lithium battery electrode coatings before coating with cleanable stainless construction flexible filter mesh selection reliable pilot scale processing and routine maintenance
Battery Slurry Filtration Device Laboratory Slurry Filter
Laboratory battery slurry filtration device removes hard particles at 124 microns with stainless steel construction, low pressure drop, 500 mL capacity, vacuum assistance, flexible mesh options for clean consistent electrode research samples and convenient operation
20L Laboratory Planetary Dispersion Vacuum Mixer Cantilever Lifting Bucket for Lithium Battery Slurry Mixing
20L laboratory planetary dispersion vacuum mixer with cantilever lifting bucket for lithium battery slurry mixing, high viscosity processing, precise heating cooling, and uniform powder liquid dispersion under vacuum conditions for dependable scalable research and production workflows consistent results.
1L 2L 3L 5L Hand Operated Laboratory Vacuum Mixer
Hand operated laboratory vacuum mixer for battery slurry, glue, and chemical processing, featuring 1L and 2L capacities while supporting 3L and 5L product searches variable speed heating and dependable vacuum processing for research teams
30L Planetary Vacuum Dispersing Mixer for Battery Slurry
30L planetary vacuum dispersing mixer for battery slurry processing, high-viscosity powder-liquid mixing, dual agitation, high-speed dispersion, temperature control, and reliable vacuum operation with 15-30L working capacity, 304 contact parts, electric lifting, and mobile casters for research and pilot production environments
5L Laboratory Planetary Vacuum Mixer with Cantilever Lifting Bucket for Lithium Battery Slurry Mixing
5L laboratory planetary vacuum mixer with cantilever lifting bucket for lithium battery slurry mixing, high viscosity dispersion up to 1.2 million cP, jacketed temperature control, precision agitation, and reliable pilot scale processing for advanced battery research and materials development.
2L Laboratory Planetary Vacuum Mixer Cantilever Lifting Bucket
2L laboratory planetary vacuum mixer with cantilever lifting bucket for homogeneous battery slurry dispersion and high viscosity processing up to 1,200,000 cP, with adjustable heating cooling, precise dual agitation, and robust stainless steel construction for research scale production.
2L Laboratory Small Battery Slurry Mixer
Compact 2L laboratory battery slurry mixer for uniform dry powder and granular blending, efficient low residue operation, stainless steel construction, simple cleaning, and dependable small batch performance across battery R&D, chemical, pharmaceutical, food, and advanced materials research laboratories.
150ml Cup Vacuum Mixer With Built In Vacuum Pump For Battery Slurry Ceramic Powder Dispersion
150ml cup vacuum mixer with built-in vacuum pump for battery slurry, ceramic powder, and laboratory material dispersion, bubble-free processing, adjustable speed, programmable mixing time, compact design, and dense consistent results for demanding research and pilot-scale preparation with reliable sealing
200L Planetary Dispersion Vacuum Mixer with Cantilever Lifting Barrel for Battery Slurry Mixing
200L planetary dispersion vacuum mixer with cantilever lifting barrel delivers uniform battery slurry mixing for high viscosity processes up to 1.2M cps with jacketed temperature control variable speed agitation and integrated safety interlocks for reliable laboratory and pilot production.
Plunger Pump Feeding Device for Adjustable Laboratory Slurry Delivery and Coating Equipment
Plunger pump feeding device with adjustable piston speed, anti-drip stopping, interchangeable PP syringes, PTFE tubing, coating machine integration, compact construction, and reliable slurry metering for battery electrode, laboratory coating, and advanced materials research workflows requiring controlled continuous delivery
LiNiCoMnO2 Ni Co Mn 8 1 1 NCM 811 Cathode Material Lithium Ion Battery High Nickel Ternary NMC
High nickel NCM 811 LiNiCoMnO2 cathode material delivering exceptional energy density high specific capacity and superior cycle stability for next generation lithium ion battery cell research and development across commercial pouch cylindrical and prismatic formats.
Conductive Carbon Black Additive Powder for High Performance Battery Electrode Manufacturing
Engineered for high-performance energy storage, this premium conductive carbon black additive delivers a 45 m²/g surface area, ultra-low metal impurities, and superior percolation networks to maximize battery rate capability, cyclic stability, and long-term electrode conductivity across demanding electrochemical cell systems.

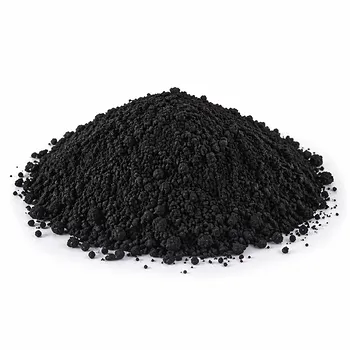

Carbon Coated Silicon Anode Material Silicon Carbon Composite Powder for Lithium Ion Batteries
