At its core, a laboratory hot press works by applying precisely controlled heat and pressure to a sample over a set period. The process involves placing a material between two heated plates, or platens, which are then brought together by a hydraulic or pneumatic system. This combination of thermal energy and mechanical force is used to shape, bond, cure, or densify the material into a desired state.
The true function of a hot press isn't merely heating and squeezing. It is a precision instrument designed to manipulate a material's internal structure, transforming its properties by controlling the exact recipe of temperature, force, and time required for a specific outcome.
The Core Principle: Transforming Materials with Heat and Force
A laboratory hot press is a fundamental tool for materials science. Its purpose is to create new material structures or prepare samples for analysis that would be impossible to achieve at room temperature.
The Goal of Hot Pressing
The primary goal is to fundamentally alter a material. This can include sintering ceramic powders into a solid block, curing a polymer composite, bonding layers of different materials together, or forming a metal into a specific shape.
How Heat Facilitates Change
Heat provides the thermal energy needed to make materials more pliable. For polymers and composites, it initiates chemical reactions (curing). For metals and ceramics, it allows atoms to diffuse and bond, densifying the material and eliminating internal voids.
How Pressure Ensures Uniformity
Pressure serves several critical functions. It forces the material to conform to the shape of the mold, ensures intimate contact between particles or layers for effective bonding, and squeezes out trapped air or volatile byproducts. This results in a dense, uniform sample with a fine, controlled microstructure.

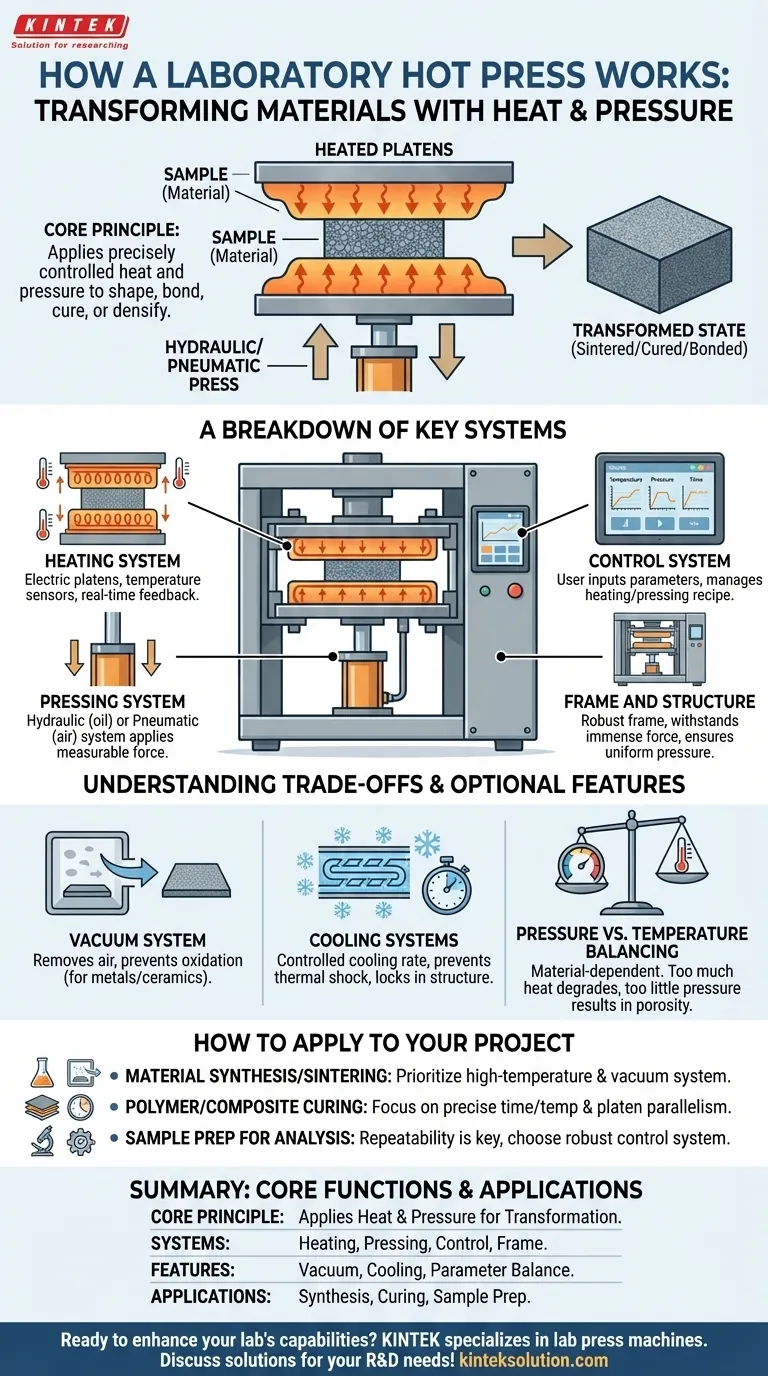

A Breakdown of the Key Systems
Understanding how a hot press works requires looking at its main components, which function together to execute the precise heating and pressing cycle.
The Heating System
This is typically composed of upper and lower platens that contain electric heating elements. Temperature sensors, like thermocouples, are embedded within the platens and provide real-time feedback to the control system, ensuring the sample reaches and holds the exact target temperature.
The Pressing System
The force is generated by a hydraulic (oil-based) or pneumatic (air-based) system. A cylinder pushes the platens together, applying a specific, measurable force to the sample. Hydraulic systems are common as they can generate extremely high pressures in a controlled manner.
The Control System
This is the brain of the operation. The user inputs the desired parameters—target temperature, pressure level, and holding time—via a human-machine interface. The controller then manages the heating and pressing systems to execute this "recipe" with high precision and repeatability.
The Frame and Structure
The entire assembly is housed in a robust metal frame. This structure must be strong enough to withstand the immense forces generated during the pressing cycle without deforming, ensuring the pressure is applied evenly across the sample.
Understanding the Trade-offs and Optional Features
While the basic principle is straightforward, advanced applications require additional capabilities that address common material processing challenges.
The Need for a Vacuum
Many materials, especially metals and certain ceramics, will oxidize or react with air at high temperatures. To prevent this, a hot press can be equipped with a vacuum system. By removing the air from the chamber, the sample is processed in an inert environment, preserving its chemical purity.
The Role of Cooling Systems
The cooling phase is often just as critical as the heating phase. A controlled cooling rate can be essential for locking in a specific crystal structure or preventing thermal shock that could crack the sample. Some presses incorporate water-cooling channels in the platens for rapid and controlled cool-downs.
Pressure vs. Temperature: The Balancing Act
There is no single "best" setting; the ideal parameters are entirely material-dependent. Too much heat can degrade a polymer, while too little pressure can result in a porous, weak ceramic. Researchers use the hot press to explore these parameters and find the optimal processing window for a given material.
How to Apply This to Your Project
Your specific goal will determine which features of a hot press are most critical.
- If your primary focus is material synthesis or sintering: Prioritize a model with high-temperature capabilities and an integrated vacuum system to prevent oxidation.
- If your primary focus is polymer or composite curing: Focus on precise time and temperature control, as well as platen parallelism to ensure uniform thickness and curing.
- If your primary focus is sample preparation for analysis: Repeatability is key. A machine with a robust, easy-to-use control system will ensure your samples are consistent.
Ultimately, the laboratory hot press is a versatile tool that gives you direct control over the fundamental properties of your materials.
Summary Table:
| Aspect | Key Details |
|---|---|
| Core Principle | Applies heat and pressure to transform materials via sintering, curing, bonding, or forming. |
| Heating System | Electric platens with thermocouples for precise temperature control. |
| Pressing System | Hydraulic or pneumatic systems for applying measurable force. |
| Control System | User-input parameters (temperature, pressure, time) for repeatable cycles. |
| Optional Features | Vacuum for oxidation prevention, cooling systems for controlled rates. |
| Applications | Material synthesis, polymer curing, sample preparation for analysis. |
