At its core, a hot press primarily applies pressure using a hydraulic system. A hydraulic cylinder generates immense force, which is then transferred to the workpiece through heated plates, known as platens, to mold, laminate, or cure the material under controlled heat and pressure.
The generation of force is only the first step. The true function of a hot press lies in its ability to translate that raw force into precisely controlled and perfectly uniform pressure across the entire surface of a material, which is the key to preventing defects and ensuring a high-quality final product.
The Core Mechanism: Hydraulic Power
A hot press is fundamentally a machine for applying controlled force. For the vast majority of applications, from laboratory presses to industrial lamination lines, this force originates from a hydraulic system.
How the Hydraulic Cylinder Works
The system uses a pump to move hydraulic fluid into a cylinder, pushing a piston. This piston is connected to one of the press's platens.
Because liquids are practically incompressible, this hydraulic action generates a powerful and highly controllable mechanical force. This force pushes the movable platen against the fixed platen, compressing the material placed between them.
Why Hydraulics Are Ideal for This Task
Hydraulic systems provide significant force multiplication, allowing a relatively small motor and pump to generate many tons of pressure. This method is robust, reliable, and allows for very precise adjustments to the amount of pressure being applied.
From Force to Uniform Pressure: The Role of the Platen
Generating force is not enough; it must be applied evenly. This is the critical job of the press head, or platen.
Ensuring Even Compression
If pressure is uneven, the final product can have air bubbles, weak spots, or an inconsistent structure. To prevent this, the platen is engineered to be extremely rigid and flat.
The references highlight that platens are often "horizontally thickened" to resist bending or deformation under the immense forces of the hydraulic cylinder, ensuring the pressure is distributed uniformly.
Control and Measurement
Modern hot presses incorporate digital pressure gauges. These instruments allow an operator to preset a specific pressure range and monitor it in real-time. This ensures that every cycle is repeatable and that the pressure applied matches the exact specifications required for the material.
A Specialized Approach: Combining Positive and Negative Pressure
For certain applications, particularly those involving wrapping flexible materials like PVC around complex shapes, a more advanced system is used.
What is This "Dual-Pressure" System?
This method first uses a vacuum (negative pressure) to suck a flexible membrane and the PVC film down onto the workpiece, conforming it to the surface.
Then, positive pressure is applied on top of the membrane. This added downward force ensures superior adhesion, eliminates tiny air pockets, and provides better "linear positioning" than a vacuum-only system can achieve.
When Is It Used?
This dual-pressure system is essential for manufacturing products like cabinet doors, furniture components, and other items where a decorative film must be perfectly bonded to a shaped substrate. It is specifically noted for its effectiveness with PVC series materials when used with a compatible adhesive.
Understanding the Key Considerations
Choosing or operating a hot press requires understanding the purpose behind its design. The goal is not simply to press something hard, but to achieve a specific material transformation.
The Critical Need for Uniformity
The single most common failure point in hot pressing is non-uniform pressure. A platen that is not perfectly flat or a frame that flexes under load will ruin the workpiece. The design of the press head, often using advanced materials like titanium alloys for thermal stability, is paramount.
The Importance of Control
The ability to set, hold, and release pressure according to a precise schedule is just as important as the heat. This control is what prevents internal stresses, ensures proper adhesive curing, and creates a "fine, close organizational structure" in the finished part. Without precise control, results are inconsistent and unreliable.
How to Apply This to Your Project
Your choice of press and your operational focus should be dictated by your end goal.
- If your primary focus is laminating flat panels or molding solid samples: A standard hydraulic press is your tool. Your priority should be a machine with thick, rigid platens and precise digital pressure control.
- If your primary focus is wrapping 3D shapes with materials like PVC: You require a vacuum press that also incorporates a positive pressure application cycle to ensure perfect adhesion and form.
- If your primary focus is ensuring absolute quality and repeatability: Pay closest attention to the pressure control system. The ability to program and monitor the pressure cycle is non-negotiable for high-specification work.
Ultimately, understanding how a press applies pressure allows you to select the right equipment and process to achieve your desired material outcome flawlessly.
Summary Table:
| Component | Function | Key Benefit |
|---|---|---|
| Hydraulic Cylinder | Generates force via fluid pressure | High force multiplication and precise control |
| Platen | Distributes force evenly across material | Prevents defects like air bubbles and weak spots |
| Dual-Pressure System | Combines vacuum and positive pressure | Ideal for wrapping complex shapes with materials like PVC |
| Digital Pressure Gauge | Monitors and controls pressure in real-time | Ensures repeatable cycles and consistent quality |
Ready to enhance your laboratory's capabilities with precise pressure control? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver uniform pressure for flawless material outcomes. Contact us today via our contact form to discuss how our solutions can meet your specific needs and boost your efficiency!

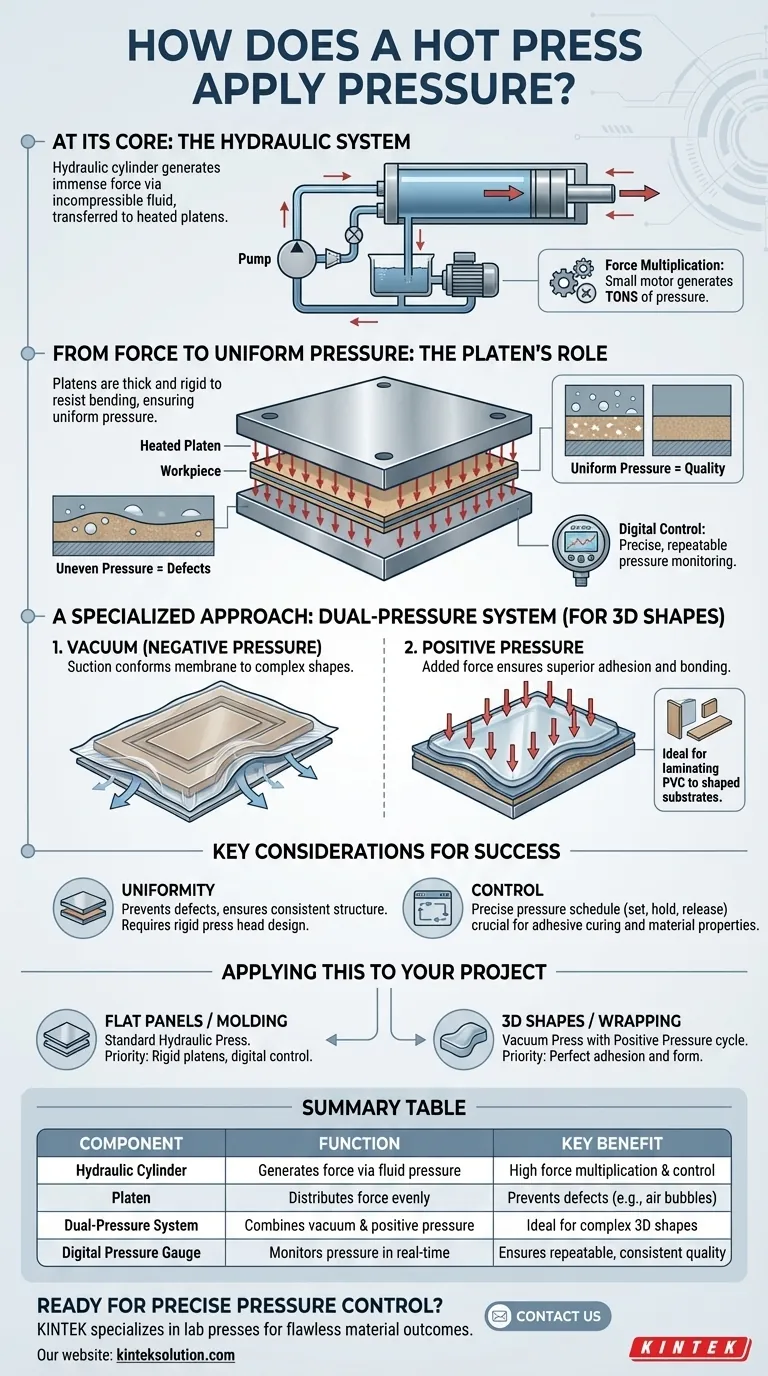

Visual Guide
