Automatic Heated Lab Press

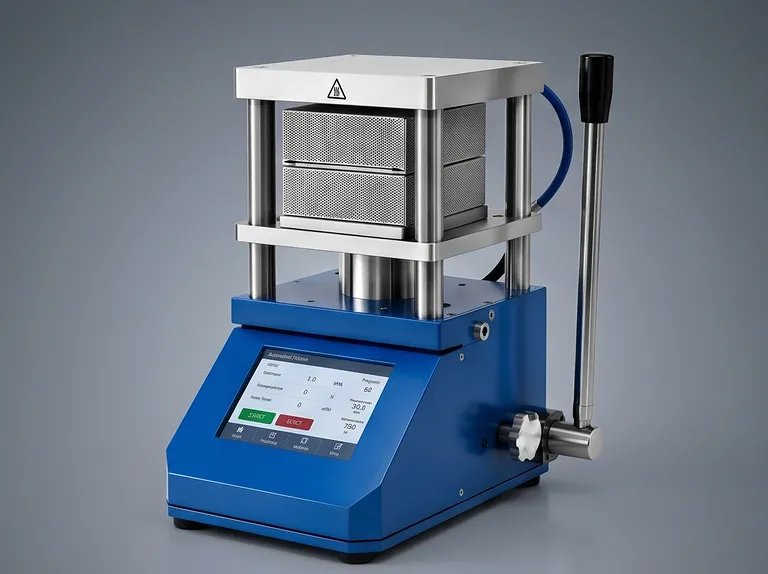

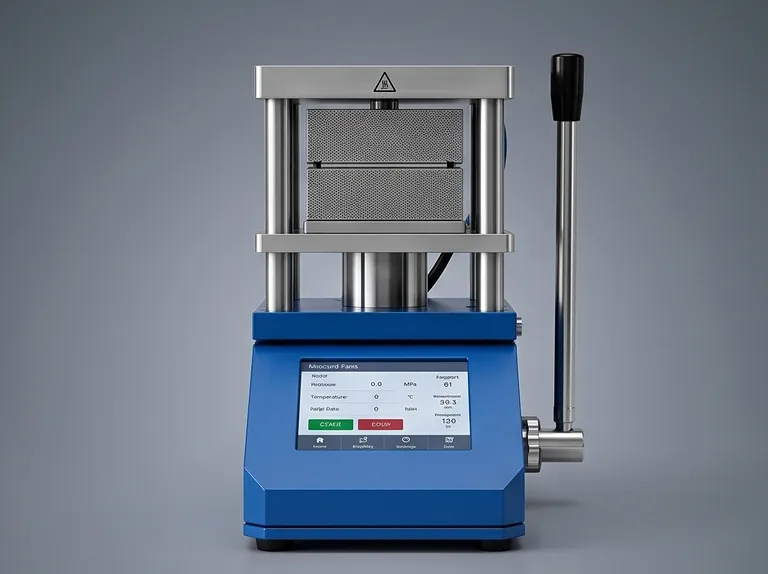

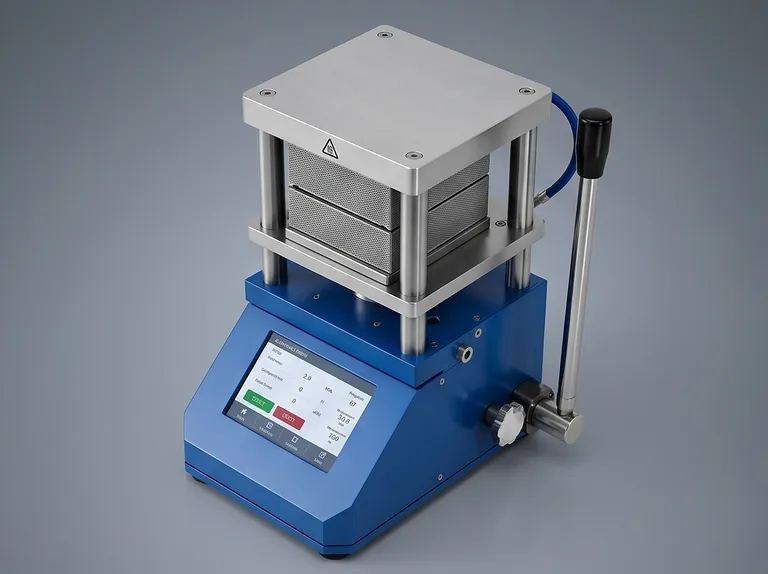

Manual Hot Press with 7 Inch Touchscreen and Narrow Footprint
Item Number : XP20
Price varies based on specs and customizations
- Max Force
- 0 – 10.0 Tons (0 – 100 kN)
- Platen Size
- 150 × 150 mm
- Control Panel
- 7-inch Programmable Touchscreen
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Product Overview
This compact manual hydraulic hot press redefines space efficiency for advanced materials research. It combines up to 10 tons of force with an ultra-narrow 290 mm chassis and an intuitive programmable touchscreen, making it a perfect fit for laboratories where bench space is at a premium. The rigid 75 kg monolithic steel frame ensures repeatable high-pressure performance without deflection.
Primarily designed for pressing electrodes, polymer films, solid-state electrolytes, and composite laminates, this system serves battery R&D, polymer science, and advanced materials labs. Its ability to operate directly inside inert-atmosphere gloveboxes expands its utility for air-sensitive processes such as lithium-metal or sulfide-electrolyte handling.
Built with CE-certified safety and robust engineering, this unit delivers exceptional reliability under continuous use. The FEA-optimized hydraulic routing and 30 kg of internal structural reinforcement provide lasting dimensional stability, ensuring consistent results cycle after cycle in demanding research environments.
Key Features
- Ultra-Narrow 290mm Footprint: Space-saving design achieved through FEA-driven optimization of internal hydraulics and electrical pathways, reinforced with monolithic steel for zero frame deformation and easy glovebox antechamber clearance.
- 7-Inch Programmable Touchscreen: Aura-Touch™ industrial controller provides real-time temperature and pressure data logging, multi-segment profile programming, and one-touch recipe execution for complex sintering or curing curves.
- High-Rigidity 75 kg Frame: An additional 30 kg of structural steel is integrated internally, eliminating any flex even under maximum 10-ton load and ensuring uniform platen pressure over years of operation.
- Embedded Dual-Platen Independent Heating: Both upper and lower platens feature built-in heating elements and water-cooling channels, supporting rapid thermal ramping and controlled cooling up to 300 °C with optional high-temp modules.
- Configurable Force & Daylight Options: Standard 0–10 ton configuration with an alternative 0–5 ton high-speed heating variant for specialized materials; platen daylight can be upgraded from 50 mm to 60 or 65 mm for thicker tooling.
- Modular Application Kits: Compatible with a precision 100 µm square film mold, gap-adjustable sheet mold, and closed-loop water chiller for expedited cooldown and seal protection.
- Global Electrical Compatibility: Available in 220V-230V/50Hz standard, with options for 110V/60Hz North American or 220V/60Hz Korean grids, all single-phase laboratory power.
- CE Certified Safety: Full compliance with international safety standards ensures reliable operation in academic and industrial settings worldwide.
Applications
| Application | Description | Key Benefit |
|---|---|---|
| Battery Electrode Calendering | Pressing cathode and anode active materials onto metal current collectors for coin and pouch cells. | Uniform thickness and density with precise pressure control for reproducible cell performance. |
| Solid-State Electrolyte Pelletizing | Compacting ceramic or polymer electrolyte powders into dense pellets under controlled heat and pressure. | Achieves high ionic conductivity and mechanical integrity for next-generation solid-state batteries. |
| Polymer Film Molding | Producing sub-100 µm films using the dedicated square mold kit for thermoplastic barrier or membrane research. | Consistent thickness down to 100 microns with minimal variation across the entire platen area. |
| Composite Material Lamination | Consolidating multi-layer stacks of fiber-reinforced polymers, hybrid laminates, or flexible electronics. | Even pressure distribution prevents delamination and void formation in layered structures. |
| High-Temperature Sintering of Ceramics | Sintering ceramic or metal powder compacts using the optional 300 °C heating module with multi-step profiles. | Accelerates diffusion bonding while maintaining precise temperature gradients for high‑density parts. |
| Glovebox Integration for Air‑Sensitive Materials | Processing lithium metal, sulfide electrolytes, or oxygen‑sensitive compounds entirely within an inert atmosphere. | Narrow 290 mm width allows passage through standard 12‑inch antechamber ports without disassembly. |
| Quality Control Sample Preparation | Fabricating standardized test specimens for tensile, flexural, or impact testing per ASTM/ISO methods. | Delivers consistent specimen dimensions and properties, supporting reliable and repeatable test results. |
Technical Specifications
Model: XP20
Standard Configuration
| Parameter | Value |
|---|---|
| Max Force | 0 – 10.0 Tons (0 – 100 kN) |
| Platen Size | 150 × 150 mm |
| Control Panel | 7-inch Programmable Touchscreen |
| Heating Style | Embedded Heater Dual-Platen Independent Heat |
| Cooling Loop | Built-in Water-Cooling Channels |
| Certifications | CE Certified |
| Chassis Dimensions (Standard) | 290 × 280 × 390 mm |
| Net Weight | 75 kg |
Dynamic Configuration Modules
| Module | Standard (XP20) | Performance (XP20-P) | Engineering Notes |
|---|---|---|---|
| Force Limit | 0 – 10.0 Tons (0-100 kN) | 0 – 5.0 Tons (0-50 kN) with enhanced heater array for rapid heating | 5T variant optimized for high‑temperature, fast‑ramping special materials. |
| Platen Daylight | 50 mm | 60 mm or 65 mm | Upgraded opening accommodates thicker stainless steel or high‑pressure molds. |
| Chassis Options | 290 × 280 × 390 mm, 75 kg | 280 × 240 × 380 mm, 80 kg (classic 2024 layout) | 2025 narrow design excels in glovebox use; 2024 version suits traditional benchtop setups. |
| Electrical Standard | AC 220V-230V / 50Hz | AC 110V/60Hz (North America), AC 220V/60Hz (Korea) | All variants work with standard single‑phase laboratory power. |
Compatible Accessories: Optional kits include a 100 µm precision square film mold, a gap‑adjustable sheet mold for variable thickness polymer/electrolyte layers, and a CW‑3000 closed‑loop water chiller that directly connects to the built‑in cooling ports for faster thermal cycling and extended seal life.
Why Choose This Product
- Long-Term Reliability: The 75 kg monolithic steel frame, FEA‑optimized hydraulic path, and heavy‑duty platens are engineered to deliver zero deflection and maintenance‑free service in high‑throughput research labs.
- Precision Manufacturing: Independent dual‑platen heating with water cooling ensures ±1 °C uniformity and rapid temperature cycling, while the touchscreen controller stores and executes complex multi‑step thermal‑pressure profiles with recipe repeatability.
- Glovebox‑Ready Compactness: At only 290 mm wide, this press rolls directly through standard 12‑inch glovebox antechambers, enabling true inert‑atmosphere processing of air‑sensitive advanced materials.
- Global Compliance & Support: CE certified with flexible worldwide shipping (DDP/DDU), a 12‑month warranty, and lifetime technical support backed by responsive supply chain logistics.
- Customizable for Your Research: From force ranges and daylight to electrical standards and dedicated application mold kits, this system adapts to your specific material requirements rather than forcing compromises.
Contact us today to discuss your pressing needs and receive a tailored solution and quote.
