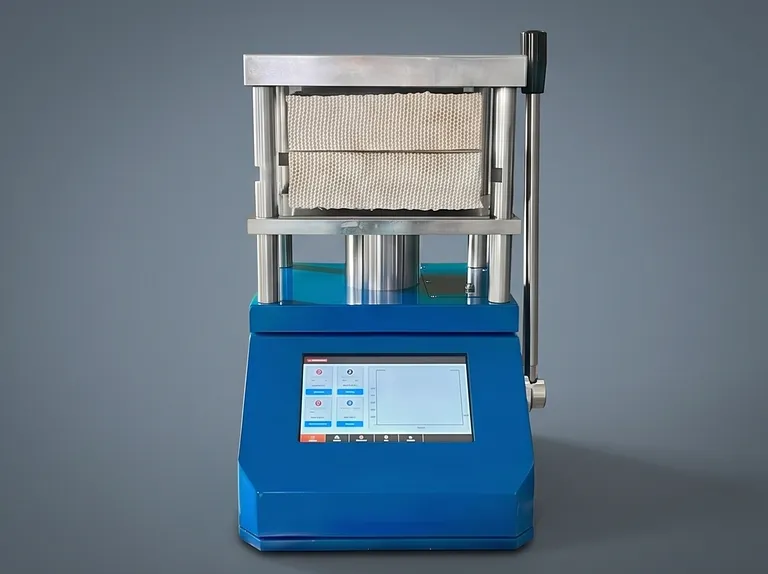

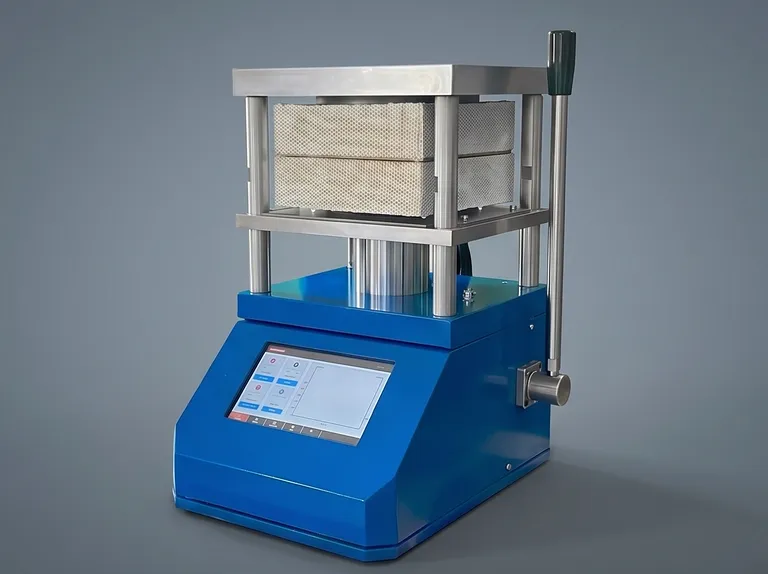

Laboratory 30 Ton Manual Hot Press with 200x200mm Heated Platens and Touchscreen Controller

Product Overview

This laboratory hot press is engineered to deliver up to 30 metric tons of clamping force across a compact 200×200 mm platen area, achieving exceptional pressure densities for demanding materials research. The unit integrates a hand-operated hydraulic ram with a sophisticated digital control system, enabling precise manual force application with real-time digital pressure and temperature logging.

Designed for advanced functional materials, solid-state battery components, electrolyte ceramics, and high-toughness polymer films, this equipment excels in powder compaction and hot-pressing applications where consistent high pressure and uniform heating are critical.

Built with a robust steel frame and powered by a 2800W dual-zone heating system, the press guarantees rapid, stable thermal ramping up to 300°C while maintaining temperature uniformity. Its rugged construction and CE certification ensure dependable performance in busy research labs and pilot production environments.

Key Features

• Low-Profile Custom Die Set: Comes with an ultra-flat φ50 mm pellet die (height ≤42mm) made of hardened tool steel, specifically designed to fit the 50mm daylight gap, enabling safe, high-load powder compaction under temperature.
• 2800W Dual-Plate Active Heating: Independent upper and lower embedded heaters deliver a combined 2800W, accelerating thermal ramping and ensuring uniform plate temperature up to 300°C, preventing cold spots that could degrade sensitive materials.
• Programmable Touchscreen Controller: A 7-inch capacitive display with multi-segment temperature-time profiling and digital pressure readout allows researchers to set, monitor, and record every step of the hot-pressing cycle.
• Manual Hydraulic with Digital Feedback: The hand-operated lever provides tactile control while a precision pressure sensor digitizes force from 0–30 tons, combining the responsiveness of manual pressing with the reproducibility of digital data logging.
• Integrated Water Cooling Channels: Built-in quick-connect cooling circuit in the platens enables rapid cooling after hot pressing, reducing cycle times and protecting heat-sensitive components.
• CE Certified Safety and Compliance: The press meets international safety standards, ensuring operator protection and regulatory compliance in laboratory environments.
• Sturdy, Compact Design: With a mass of 160 kg, the unit requires a robust steel workbench but offers a relatively small footprint for its force capacity, ideal for space-constrained labs.

Applications

Technical Specifications

Mechanical & Press Dynamics

Thermal & Electrical Specifications

Physical Dimensions & Standards

Why Choose This Product

• Proven Reliability in Demanding Environments: Every press is built with a heavy-duty steel frame and premium hydraulic components, ensuring consistent 30-ton performance over years of intensive use in research labs.
• Precision Manufacturing and Superior Build Quality: The custom low-profile die and dual-platen heating system are machined to tight tolerances, delivering uniform pressure distribution and thermal stability essential for reproducible results.
• Industry-Leading Control and Data Logging: The 7-inch touchscreen with PID temperature programming and digital force readout elevates manual pressing to a new level of process control and documentation.
• Responsive Global Support Network: Backed by a 12-month warranty and lifetime free remote technical consultation, with a well-stocked spare parts inventory for minimal downtime.
• Customization Capabilities: Our engineering team can tailor die dimensions, platen configurations, and control software to meet unique research workflows or production requirements.

Contact our team today to discuss your application and request a customized quote, ensuring you get the exact hot press solution your laboratory demands.
