10T Manual Hot Press 15T Micro Thermal Press Platform Programmable Touchscreen Control

Product Overview

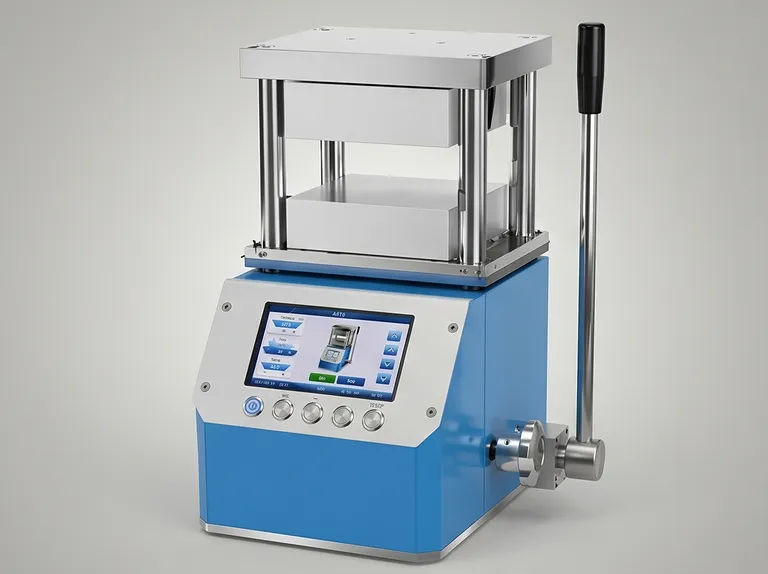

This micro thermal press platform is a precision benchtop solution engineered for labs requiring high-force pressing with exact temperature control and space efficiency. By combining a 15T hydraulic system with programmable dual-zone heating in a 260mm-wide chassis, the equipment delivers an outstanding footprint-to-performance ratio for demanding research environments.

Primarily serving polymer composite development, battery material research, and advanced thin-film processing, this unit enables reproducible hot pressing, curing, and sintering under tightly controlled thermal and mechanical conditions. From solid-state electrolyte films to polymer matrix composites, it supports iterative process refinement with high repeatability.

Built on a reinforced 130kg steel frame, the system offers industry-leading rigidity, virtually eliminating frame deflection under full 15T load. The intelligent touchscreen controller and rapid heating modules ensure robust, uninterrupted operation even in high-throughput labs, making it a trusted workhorse for critical research applications.

Key Features

• 260mm Ultra-Narrow Footprint: Strategic reorganization of the hydraulic reservoir and vertical electrical busbar routing reduced machine width from 330mm to 260mm. The saved volume is reinforced with 30kg of additional structural steel, creating a 130kg monolithic frame that easily passes through standard glovebox airlock doors while maintaining extreme rigidity under load.
• Aura-Touch™ Programmable Interface: A built-in 7-inch industrial capacitive touchscreen runs an intuitive custom operating system, allowing researchers to create, save, and execute complex multi-step temperature-pressure profiles. Real-time graphical overlays of temperature, pressure, and time provide process transparency without external data loggers.
• 15T High-Force Hydraulic System: Delivers precisely regulated pressure from 0 to 15 tons (150 kN) with excellent linearity, suitable for demanding material densification and curing processes that require consistent force application.

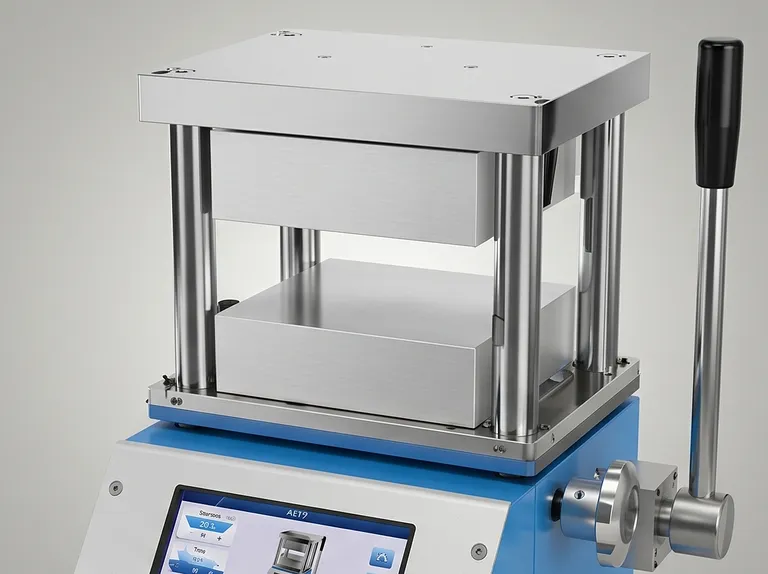

• Dual-Zone Heated Platens: Independently controlled upper and lower cartridge heater arrays ensure uniform thermal distribution across the full 200×200 mm working area. Power options up to 2800W enable rapid heating to 300°C, reducing cycle times dramatically.
• Monolithic 130kg Steel Frame: Extra-heavy steel reinforcement throughout the press structure virtually eliminates frame deflection, ensuring consistent platen parallelism and pressure stability even during maximum-load cycles.
• Scriptable Multi-Step Profiles: Beyond simple dwells, users can define up to 20-step temperature-pressure sequences with ramps, soaks, and cooling stages, stored locally for repeatable experimental runs without continuous operator intervention.
• Glovebox-Ready Design: The 260mm width and side-mounted service ports allow seamless transfer through laboratory glovebox airlocks, making it ideal for air-sensitive battery material research and synthesis.
• Integrated Cooling Circuit: Built-in water cooling channels maintain hydraulic system integrity during prolonged high-temperature operation. An optional closed-loop chiller connection accelerates platen cooldown for faster sample turnaround times.

Applications

Technical Specifications

General Specifications

Heating & Performance Modules

Why Choose This Product

• Proven Long-Term Reliability: Built on a 130kg extra-heavy steel chassis with industrial-grade hydraulic seals, this press delivers consistent performance over thousands of cycles, minimizing downtime in critical research settings.
• Precision-Engineered Heating: Dual-zone cartridge heater arrays with PID-based closed-loop control maintain ±1°C temperature uniformity across the entire platen, ensuring repeatable thermal profiles for sensitive materials.
• Global Compliance & Responsive Support: The XP18 system ships with necessary electrical certifications for international labs, backed by a 12-month warranty and lifetime technical assistance, with direct engineer access for remote diagnostics.
• Customization-Ready Architecture: Choose between Core or Turbo heating modules, add a closed-loop water chiller, or request custom mold configurations—all seamlessly integrated without compromising the system’s compact footprint.
• Space-Efficient without Compromise: The ultra-narrow design not only fits glovebox airlocks but also maximizes valuable benchtop real estate in crowded labs, all while maintaining 15T pressing capability rarely seen in this form factor.

Contact our engineering team today to discuss your specific process requirements and request a personalized quotation, including delivery and installation options for your region.
