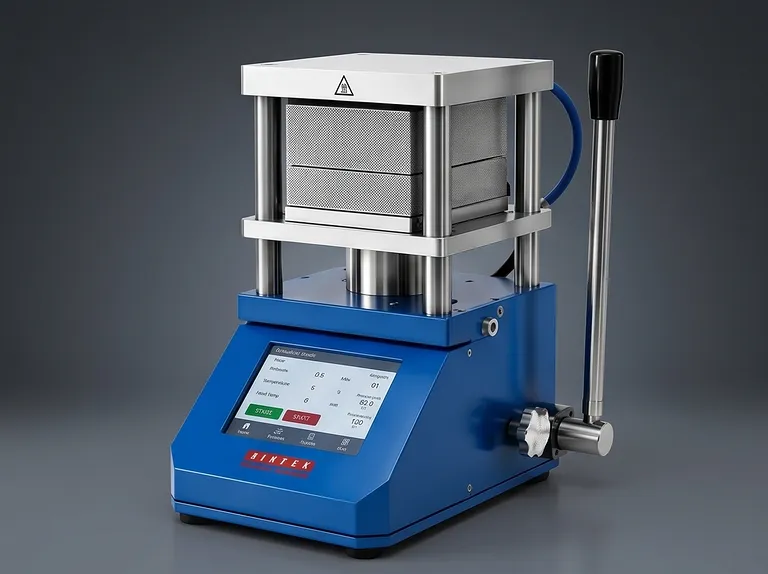

Manual Heated Lab Press
Compact Manual Hot Press with Programmable Temperature and Pressure Control
Item Number : XP21
Price varies based on specs and customizations
- Max Force
- 0–10 Tons (XP21-2025) / 0–5 Tons (XP21-2024)
- Platen Size
- 180 × 180 mm
- Control Panel
- 7-inch Programmable Touchscreen
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Product Overview
This thermal press system delivers exceptional rigidity and a compact footprint, specifically engineered for laboratories where space and precision are paramount. Weighing 130 kg yet occupying just 260 mm width, it glides through glovebox antechambers while maintaining structural integrity under 10 tons of force. Its 7-inch programmable touchscreen enables precise multi-segment temperature-pressure profiling, advancing beyond traditional manual controls.
Researchers in battery technology, polymer science, and advanced materials rely on this unit for hot pressing, lamination, and sample preparation. The programmable touchscreen control enables automated multi-step curing profiles, elevating manual hot press workflows to reproducible, semi-automated processes.
Built with heavy-gauge steel and CE‑certified components, this press delivers long-term, maintenance-friendly operation. Integrated water cooling and thermal safety features protect both the hydraulic system and heating elements, ensuring consistent performance across thousands of cycles.
Key Features
- Ultra-Narrow 260mm Chassis: FEA-optimized internal hydraulic and electrical routing achieves a slim profile that fits through standard glovebox airlocks, while 30 kg of additional monolithic steel ensures zero frame deflection under full load.
- 7-inch Programmable Touchscreen: Intuitive Aura-Touch™ interface (generic equivalent: intelligent control system) displays real-time temperature-force curves, allowing researchers to create, save, and run complex multi-step heating and pressure profiles with one touch.
- High-Rigidity 130kg Construction: Reinforced all-steel frame prevents micro-deformation during high-pressure cycles, delivering consistent platen parallelism and long-term dimensional stability.
- Dual-Platen Independent Heating: Each 180×180 mm platen is embedded with heaters and controlled independently, enabling up to 300°C with rapid, uniform temperature distribution across the entire surface.
- Built-in Water Cooling Channels: Integrated cooling ports seamlessly connect to an external chiller, accelerating platen cool-down and protecting internal hydraulic seals from thermal stress.
- Flexible Multi-Segment Programming: Easily configure temperature ramps, dwells, and pressure hold stages directly on the touchscreen, ensuring precise reproduction of curing or sintering cycles for demanding research applications.
- CE Certified Safety: Comprehensive CE compliance guarantees electrical, mechanical, and thermal safety, meeting rigorous international laboratory standards.
Applications
| Application | Description | Key Benefit |
|---|---|---|
| Solid-State Battery Film Prep | Pressing uniform 100 µm solid electrolyte films using dedicated square film tooling | Consistent thin-film quality critical for battery performance |
| Polymer Barrier Membranes | Molding variable-thickness polymer sheets with gap-adjustable mold | Tailored thickness for flexible barrier and packaging materials |
| Thermoplastic Composite Lamination | Laminating composite layers under high pressure and precise temperature profiles | Strong, void-free bonds for structural and aerospace materials |
| Material Sintering & Curing | Running multi-segment heating and pressure cycles for advanced ceramics and composites | Automated repeatability accelerates materials research |
| Glovebox-Integrated Pressing | Operating within inert atmosphere gloveboxes thanks to the 260 mm slim chassis | Contamination-free processing for air‑sensitive samples |
| General R&D Hot Pressing | Customizable force/temperature profiles for experimental material synthesis | Versatile platform supports rapid prototyping across disciplines |
Technical Specifications
The following table summarizes the standard specifications and available configuration options for the two primary models. These models share the same core heating, control, and safety systems while offering distinct force and dimensional characteristics.
| Parameter | XP21-2025 (Slim High Force) | XP21-2024 (Classic Compact) |
|---|---|---|
| Max Force | 0–10.0 Tons (100 kN) | 0–5.0 Tons (50 kN) |
| Platen Size | 180 × 180 mm | 180 × 180 mm |
| Platen Daylight | 50 mm | 60 mm or 65 mm (optional) |
| Control Panel | 7-inch Programmable Touchscreen | 7-inch Programmable Touchscreen |
| Heating Style | Embedded Heater Dual-Platen Independent Heat | Embedded Heater Dual-Platen Independent Heat |
| Cooling Loop | Built-in Water-Cooling Channels | Built-in Water-Cooling Channels |
| Compliance | CE Certified | CE Certified |
| Dimensions (W×D×H) | 260 × 347 × 422 mm | 300 × 300 × 420 mm |
| Net Weight | 130 kg | 100 kg |
| Electrical Standard | AC 220V-230V/50Hz; 110V/60Hz or 220V/60Hz options available | AC 220V-230V/50Hz; 110V/60Hz or 220V/60Hz options available |
Custom configurations, including force limits, daylight, and electrical standards, are available upon request. Add-on tooling kits and closed-loop water chillers can be integrated to create complete application-ready solutions.
Why Choose This Product
- Proven Structural Integrity: FEA-optimized all-steel frame prevents deflection even under maximum load, ensuring consistent platen parallelism and repeatable press cycles over years of rigorous use.
- Precision Programmable Control: The 7-inch touchscreen interface allows multi-segment profile programming with real-time feedback, reducing operator error and enabling reproducible research.
- Space-Efficient Design: With a narrow 260mm chassis, this press is uniquely suited for glovebox integration, maximizing limited lab space without sacrificing force capacity.
- Customizable Configuration: Multiple pressure ranges, daylight options, and electrical standards are available, along with application-specific tooling kits for film, sheet, and composite manufacturing.
- Global Compliance & Support: CE-certified and backed by 12-month warranty with lifetime technical consultation, ensuring worry-free operation and compliance in international labs.
Contact our team today to discuss your application and request a tailored quote with the ideal configuration for your research needs.
