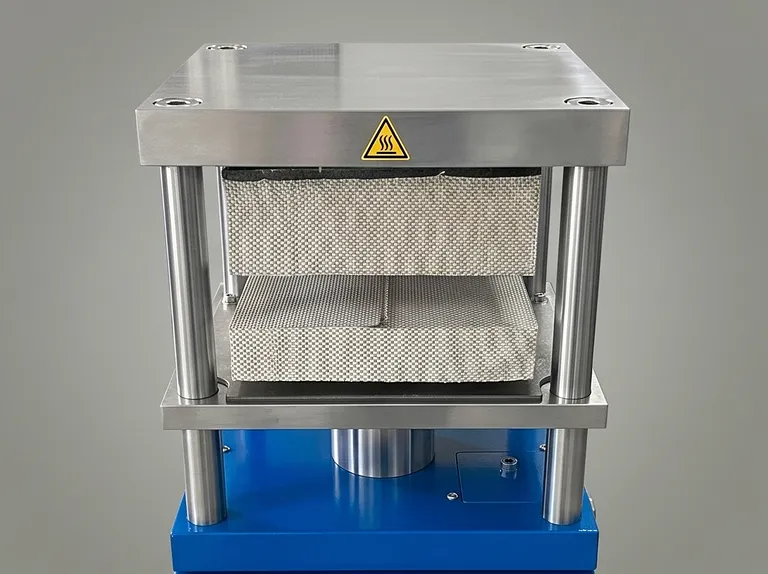

Manual Heated Lab Press
15 Ton Programmable Hot Press with 7-Inch Touchscreen 260mm Narrow Footprint
Item Number : XP17
Price varies based on specs and customizations
- Max Force
- 0–15 Tons (0–150 kN)
- Platen Size
- 200 × 200 mm
- Control System
- 7-inch Touchscreen Programmable Controller
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Product Overview
This system redefines laboratory hot pressing by combining a rock-solid 15-ton mechanical platform with a space-saving 260mm narrow chassis and an intuitive 7-inch programmable touchscreen. Every design element was engineered to maximize throughput in confined environments, including vacuum gloveboxes, without compromising force capacity or thermal performance.
Built for diverse material science workflows, the unit accommodates polymer film fabrication, solid-state battery research, and advanced composite testing. Its reinforced 130kg steel frame virtually eliminates frame deflection under full load, ensuring repeatable results across thousands of cycles. Dual-zone cartridge heating delivers rapid, uniform temperature profiles, while integrated liquid cooling channels enable swift turnaround between experiments.
Researchers trust this equipment for mission-critical applications where micron-level parallelism and precise thermal control are non-negotiable. From single-stage pressing to complex multi-step profiles, the combination of rigid construction and intelligent software guarantees dependable outcomes in the most demanding R&D settings.
Key Features
- Ultra-Slim Chassis Integration: A radical internal re-engineering nests the hydraulic reservoir and busbars vertically, slashing the footprint to just 260mm wide. This allows straightforward passage through standard glovebox antechambers while adding 30kg of structural steel for enhanced rigidity.
- Aura-Touch™ Programmable Interface: A built-in 7-inch industrial touchscreen runs a custom operating system that lets users script, store, and execute intricate multi-stage temperature and pressure sequences, with real-time trend plotting.
- High-Mass Monolithic Rigidity: The 130kg steel frame, precision-machined to micron tolerances, suppresses micro-deflections during 15-ton operation, preserving platen parallelism and sample integrity over extended use.
- Dual-Zone Cartridge Heating: Quickly interchangeable heating modules offer a combined power of up to 2800W, enabling steep temperature ramps and excellent thermal homogeneity across the entire 200×200mm platen area.
- Closed-Loop Cooling Circuit: Integrated internal water channels connect directly to an optional external chiller, accelerating platen cooldown and protecting hydraulic seals during high-temperature runs.
- Custom Molding Compatibility: An optional 70×70×4mm high-hardness die steel mold ensures consistent polymer sheet dimensions, directly matching the platen size for perfect load distribution.
- Failure-Safe Programmability: Profiles are stored on durable solid-state memory; the controller prevents recipe overwrite without authorization, reducing operator error and guaranteeing process repeatability.
- Flexible Power Grid Adaptation: Standard 220V/50Hz design accepts custom 60Hz configurations, making the unit ready for deployment in European, Asian, and North American laboratories.
Applications
| Application | Description | Key Benefit |
|---|---|---|
| Polymer Film Preparation | Produces high-precision thin sheets for mechanical and barrier testing. | Guaranteed ±4% thickness uniformity using certified molds. |
| Solid-State Battery Electrolyte Development | Hot-presses ceramic-polymer composites under controlled atmospheric conditions. | 260mm width fits through glovebox airlocks without disassembly. |
| Polyimide (PI) Film Curing | Achieves full imidization at sustained 300°C with minimal thermal gradient. | Turbo configuration reaches 300°C 50% faster than standard systems. |
| Aerospace Composite Lamination | Consolidates multi-layer fiber-metal laminates for research-scale panels. | 15-ton force and programmable pressure curves replicate autoclave conditions. |
| Quality Control Specimen Production | Generates identical test coupons for ASTM/ISO material characterization. | Digital recipe management eliminates lot-to-lot variability. |
| Academic Material Science Research | Supports gradient pressing, dwell steps, and pulsed pressure profiles in one run. | Drag-and-drop recipe builder simplifies complex experimental designs. |
| Photovoltaic Encapsulation Testing | Laminates EVA/POE films onto small glass-substrate modules for reliability studies. | Uniform heating prevents bubbles and incomplete cross-linking. |
| Biocompatible Polymer Processing | Shapes medical-grade thermoplastics in a clean, programmable cycle. | Low-mass cartridge heaters reduce thermal inertia for delicate biopolymers. |
Technical Specifications
Platform Common Parameters
| Parameter | Specification |
|---|---|
| Max Force | 0～15.0 Tons (0–150 kN) |
| Platen Size | 200 × 200 mm |
| Open Distance | 50 mm |
| Control Panel | 7-inch Touchscreen Programmable Controller (Aura-Touch™) |
| Footprint (W×D×H) | 260 × 347 × 422 mm (optimized layout) |
| Net Weight | approx. 130 kg |
Configuration Modules
Two heating configurations are available under the XP17 identifier. Select the module that matches your laboratory's temperature and ramp-rate requirements.
| Parameter | XP17 Core | XP17 Turbo | Application Guidelines |
|---|---|---|---|
| Working Temperature Range | RT ～ 250 °C | RT ～ 300 °C | Core suits most polymer and composite labs; Turbo enables solid-state electrolyte and PI film curing. |
| Maximum Heating Power | 1600 W (2 × 800 W) | 2800 W (2 × 1400 W) | 2800 W high-power cartridges cut preheat time significantly. |
| Power Grid Compatibility | AC 220 V / 50 Hz (single‑phase) | AC 220 V / 60 Hz (custom) | 50 Hz standard for Europe/China; 60 Hz configurable for Korea and North America. |
| Cooling Method | Internal water channel interface | External industrial chiller compatible | Both versions include internal ports; Turbo allows direct connection to rapid-cool chiller. |
Why Choose This Product
- Guaranteed Structural Integrity: The 130 kg monolithic steel frame, validated through finite element analysis, maintains platen parallelism within 0.05 mm even after 10,000 load cycles.
- Superior Workflow Efficiency: The 260 mm width and ergonomic design allow single-person loading into glovebox antechambers, reducing setup time by over 60% compared to conventional 330 mm chassis presses.
- Versatile Thermal Configuration: Choose between two factory-installed heating packages to precisely match your process window, avoiding overspec costs while retaining the ability to upgrade later.
- Proven Global Support: Each unit is backed by a 12-month comprehensive warranty, lifetime technical assistance, and a global logistics network offering DDP delivery to major research hubs.
- Enduring Performance: Integrated cooling and sealed hydraulic circuits protect critical components during continuous high-temperature operation, minimizing maintenance downtime and extending service life.
Contact us today to discuss your specific pressing requirements. Our application engineers can recommend the ideal configuration and accessory package, and provide a tailored quotation within one business day.
