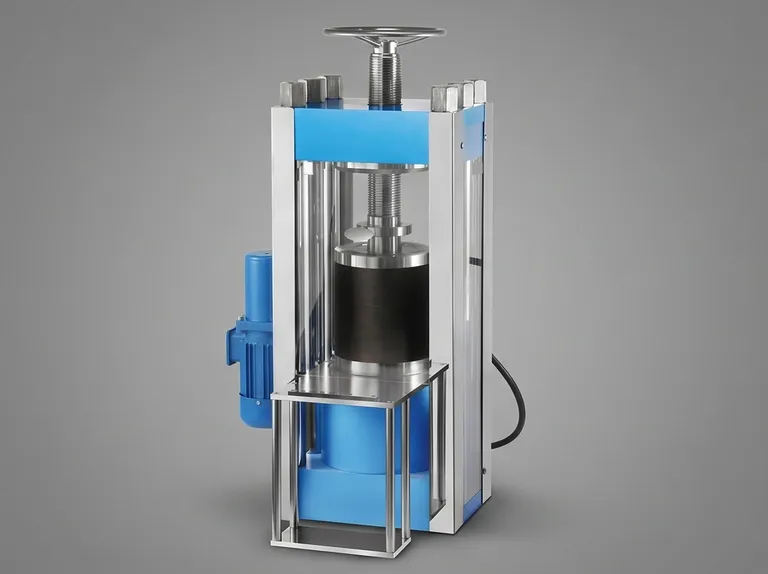

Split Warm Isostatic Lab Press 200 Ton Powder Compaction Chamber for Battery Research and Material Science

Product Overview

This advanced laboratory compaction system represents the pinnacle of high-pressure material consolidation technology, specifically engineered for demanding research and industrial preform processes. By combining a split-body architectural configuration with integrated thermal control, this equipment delivers ultra-uniform isostatic pressure distribution across powders and green bodies. The split design physically isolates the heavy-duty hydraulic frame from the delicate digital control electronics, preventing structural vibrations and high thermal outputs from affecting the precision logic processors and graphical displays. This configuration ensures an exceptionally stable, safe, and highly repeatable environment for complex specimen preparation.

Designed primarily for cutting-edge materials science, this system is an indispensable asset for laboratories and pilot plants working in solid-state battery development, technical structural ceramics, advanced powder metallurgy, and catalyst synthesis. By subjecting raw powders enclosed in flexible polymer or silicone sheaths to isotropic liquid pressure, the equipment guarantees complete density uniformity throughout the entire volume of the workpiece. This eliminates the mechanical shear stresses, density gradients, and anisotropic shrinkage common in conventional uniaxial pressing systems. The result is a highly homogeneous green body ready for premium-grade sintering or physical testing under rigorous conditions.

Built to withstand continuous operational demands in institutional, academic, and industrial research settings, this unit prioritizes structural reliability and operator safety. The heavy-walled pressure chamber is precision-engineered from forged high-tensile alloy steel, ensuring long-term fatigue resistance even under maximum load cycles. Advanced safety systems, including an impact-resistant physical door shield and automated limit switches, provide multi-layered operator protection. Laboratories worldwide can integrate this system with absolute confidence, knowing it delivers consistent, high-fidelity density outcomes for complex material geometries day after day.

Key Features

• High-Capacity Uniform Isostatic Compaction: The system delivers up to 200 tons of isotropic pressing force, ensuring uniform density across complex or delicate components and preventing structural flaws like cracks or voids. This multidirectional force distribution is crucial for consolidation of advanced technical powders where directional uniaxial pressing would otherwise create micro-cracks, localized density variations, or structural failure.
• Integrated Multi-Segment Temperature Regulation: Featuring a built-in heating element operating from room temperature up to 200°C, this system allows precise warm isostatic pressing (WIP) for binders and reactive powders that require activation. This capability enhances the flowability of thermoplastic binders within composite green bodies, resulting in optimal matrix-filler interfaces and vastly improved electrical or thermal performance.
• Intuitive 7-Inch IPS Touchscreen Interface: An advanced digital controller displays real-time parameters, curve metrics, and pressure-to-surface-force conversions, facilitating immediate processing modifications and seamless operational control. This high-luminosity IPS display offers an exceptionally wide viewing angle, ensuring that operators can inspect crucial system pressure readings and real-time step progress even from across the laboratory floor.
• Advanced Programmable Segment Profiles: Operators can configure up to 18 program segments for heating, pressure application, and dwelling, giving researchers full authority over sophisticated thermal and pressure cycles. This granular control allows users to design multi-phase heating and pressurization recipes, accommodating complex materials that require slow, staged pressure releases to avoid mechanical shock.
• Rigorous Multi-Layer Safety Systems: Equipped with a heavy-duty steel and organic glass protective door, automatic overpressure relief valves, and mechanical limit switches, the press guarantees complete operator safety during ultra-high pressure routines. The physical containment shield is engineered to absorb energy in the unlikely event of a pressure vessel failure, while mechanical limit switches prevent structural over-travel of the main ram.
• Robust Split-Body Engineering: The physical isolation of the heavy hydraulic press unit from the sensitive digital electronic controller prevents vibration, heat drift, and electrical interference, prolonging component lifetimes. This intelligent structural decoupling ensures that the high mechanical forces and temperatures generated by the pressing frame do not affect the high-precision PID logic boards and touch screen electronics.
• Automated Pressure-to-Surface Conversion: The software automatically computes the specific surface pressure applied to the sample based on the sheath dimensions, eliminating manual mathematical calculations and reducing human error. This software-driven feature dynamically adapts to both flat cylindrical and non-standard geometries, providing researchers with exact, reproducible pressure metrics in megapascals (MPa).
• High-Performance Data Export Capabilities: Critical processing history is logged in real-time and can be exported directly via a USB interface in Excel-compatible formats for deep analysis and absolute academic or industrial traceability. This integrated data logger continuously records critical temperature and pressure metrics, creating a reliable digital footprint for every consolidation test or production run.

Applications

Technical Specifications

Why Choose This Product

• Uncompromising Structural Durability: Engineered with a monolithic high-strength frame and premium hydraulic seals, this press is built to withstand continuous multi-ton cycles in high-throughput industrial and university laboratories without performance loss. The structural frame undergoes rigorous stress-relief testing to guarantee that the parallel alignment of the columns remains flawless under maximum load conditions, minimizing off-center wear on critical parts.
• Absolute Precision and Process Control: The integration of 0.01-ton resolution pressure sensors, multi-segment PID temperature loops, and automated surface pressure calculations enables flawless repeatability, making it an essential instrument for highly sensitive materials research. This precise control mechanism allows research engineers to accurately study the compaction behavior of novel nanomaterials, ensuring that every batch of sample is processed under identical environmental parameters.
• Sophisticated User-Centric Interface and Data Recording: Unlike basic analog presses, the system's digital data management, curves logging, and simple USB export save invaluable engineering hours and ensure compliance with stringent laboratory recording protocols. By converting raw data directly into organized spreadsheets, the equipment streamlines the academic research pipeline and allows for quick validation of experimental results.
• Tailored Laboratory Integration and Customization: Offered with interchangeable chamber variants (PWDA-90 and PWDA-70) and flexible voltage configurations, this system can be customized to match specific application demands and physical glovebox or benchtop workspaces. The split-frame design is also fully compatible with controlled environment gloveboxes, allowing researchers to handle highly reactive battery powders under an inert argon gas atmosphere.

For custom tooling requirements, detailed chamber configurations, or to discuss how this advanced system can elevate your laboratory pressing capabilities, contact KINTEK today for a personalized technical consultation and competitive quotation.
