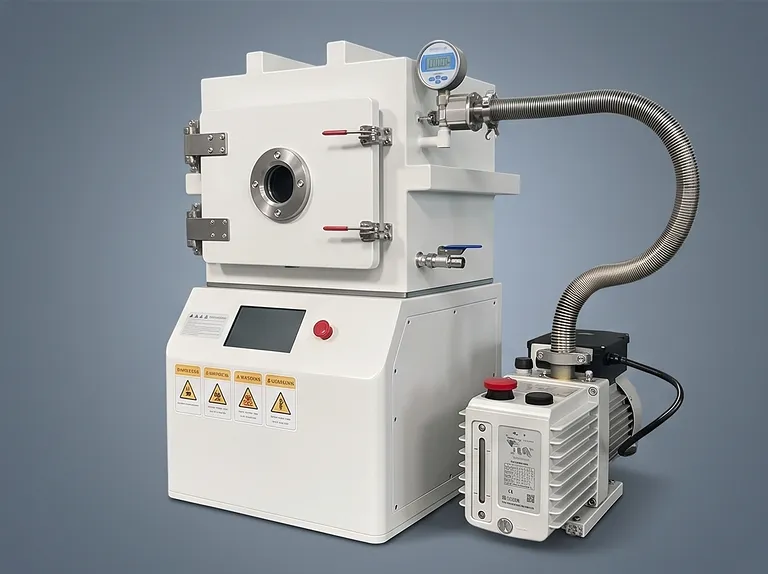

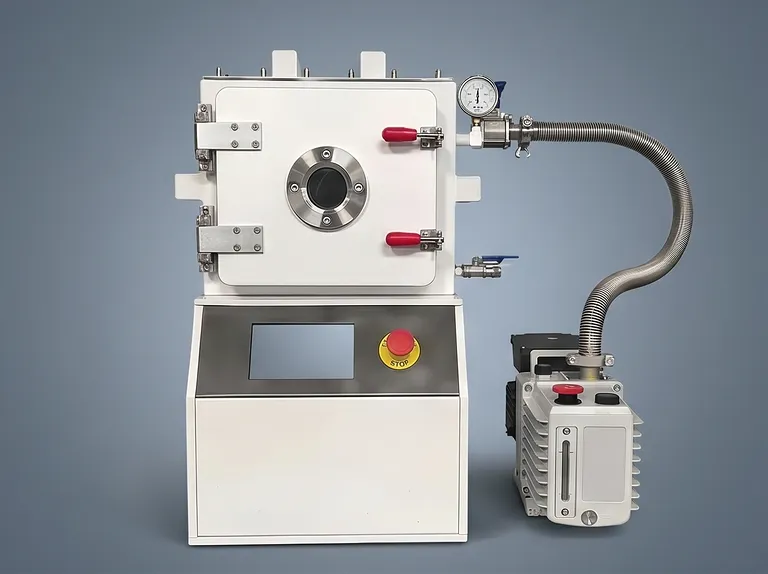

25 Ton 200x200mm Vacuum Hot Press with Programmable P-T-t Control

Product Overview

This desktop vacuum hot press is a purpose-built platform for thermally assisted pressing, sintering, and bonding in materials science laboratories. By integrating a high-force hydraulic system with a temperature-controlled platen and a sealable vacuum chamber, it creates a tightly regulated environment where heat and pressure can be applied simultaneously according to user-defined profiles. This convergence of thermal-mechanical coupling within a single, compact unit eliminates the need for separate hot plates, gloveboxes, and cold-pressing equipment, streamlining the workflow for sensitive material processing.

Designed for research institutions and industrial R&D groups, the equipment is ideally suited for developing solid-state battery materials, fabricating ceramic composites, laminating multilayer electronic devices, and conducting diffusion bonding of dissimilar metals. Its ability to maintain high vacuum or an inert gas blanket (N₂ or Ar) during processing prevents oxidation and contamination, ensuring that material purity and interfacial quality are preserved throughout the entire thermal cycle.

Engineers have prioritized system robustness: a thick SUS304 stainless steel chamber, precision-ground 200×200 mm heated platens, and an intelligent control algorithm that dynamically limits pressure at high temperatures to protect internal components. The system's P-T-t synchronization is managed by an intuitive 7-inch touchscreen interface that stores recipes, logs data, and guides operators through process setup. This smart automation reduces human error and accelerates method development, making the press accessible to junior researchers while offering the flexibility demanded by experienced process engineers. A modular design philosophy allows users to select temperature ranges, chamber options, and cooling methods, transforming the base unit into a specialized research tool. The press is also capable of maintaining constant pressure for extended periods—up to several days—making it suitable for diffusion bonding experiments that require prolonged thermal cycling. This flexible architecture future-proofs the investment, as the system can be reconfigured for evolving research directions. The unit is CE-certified and supported by a dedicated after-sales team, ensuring it delivers consistent results in demanding laboratory environments year after year.

Key Features

• Dynamic Pressure-Temperature Derating: The integrated safety logic actively monitors real-time platen temperature and automatically restricts hydraulic pressure when elevated temperatures reduce material strength. In cold mode (RT–100°C), the system delivers the full 25 tons (250 kN) of force. Above 100°C, it limits pressure to 15 tons (150 kN), preventing creep damage to ceramic heating elements and preserving mold integrity over thousands of cycles.
• Programmable P-T-t Synchronization: A unifying 7-inch PLC touchscreen replaces separate temperature controllers and manual hydraulic valves, enabling true pressure-temperature-time coordination. Users can define up to 30 segments with ramp, dwell, and step changes. The proportional hydraulic valve performs closed-loop pressure control to ±0.1 ton and features an auto-replenishment algorithm that compensates for sample compaction and thermal expansion, ensuring consistent interfacial pressure during long-duration hot pressing.
• High-Vacuum and Inert Gas Environment: Processed in a SUS304 stainless steel chamber, samples are isolated from ambient atmosphere. The system achieves a vacuum of -0.1 MPa when paired with a dual-stage rotary vane pump (240 L/min). Integrated gas inlet/outlet valves allow backfilling with high-purity N₂ or Ar, creating a protective environment for oxidation-sensitive materials such as solid electrolytes and active metal powders.
• Adaptive Multi-Voltage Power Module: To accommodate international laboratory power standards, heating elements are optimally matched to the supply voltage: 3500 W for 110/120V regions with current limiting, and 1800–3000 W for 220V or 440V systems. This ensures rapid, efficient heating without tripping breakers or overheating circuits, and eliminates the need for external transformers.
• Precision Heated Platens: The 200 × 200 mm machined platens are hardened and ground to high parallelism, providing uniform force distribution and temperature uniformity. Standard configuration achieves ≤3°C accuracy across the platen surface; with an upgraded sensor and controller, accuracy improves to ≤1°C. Maximum heating rate is 3°C/min, and optional water-cooled channels enable sustained operation at 500°C.
• Robust Safety and Compliance: Built on a heavy-duty frame, the press includes emergency stop, overload protection, and CE certification. A 50 mm daylight opening (optional 100 mm) accommodates a variety of mold assemblies, and the fully enclosed chamber design minimizes exposure to hot surfaces.
• Operator-Centric Design: The fully enclosed chamber and touchscreen interface minimize direct contact with hot press platens and simplify monitoring. Interlocks ensure that heating and hydraulic systems deactivate if safety parameters are breached, protecting both the user and the sample.
• Precision-Engineered Mold Compatibility: The platens' high parallelism and uniform heating make the press suitable for a wide variety of custom mold designs. This flexibility enables easy adaptation to different sample geometries without sacrificing pressure uniformity, essential for scaling up experimental processes.

Applications

Technical Specifications

The XP26 desktop vacuum hot press series is offered in two primary configuration tiers—Standard and Professional—to address varying temperature, throughput, and precision requirements. The table below lists all key specifications.

Why Choose This Product

• Uncompromising Build Quality: The frame and chamber are fabricated from SUS304 stainless steel with precise TIG welds to maintain vacuum integrity. Critical components such as the hydraulic cylinder and temperature sensors are rated for millions of cycles, and the stainless steel construction resists corrosion from laboratory chemicals. All seals and heating elements are sourced from trusted industrial suppliers, ensuring thousands of trouble-free cycles in 24/7 operation.
• Intelligent Process Control: Beyond basic pressure relief, the system actively monitors platen temperature and dynamically adjusts allowable force. This smart interlock prevents catastrophic overheating and mold failure, a common risk in separated controller/hydraulic systems. The P-T-t coordination eliminates guesswork, enabling new operators to achieve expert-level consistency. This feature is particularly valuable when working with expensive single-crystal substrates or custom-made molds, where a pressure overshoot could mean days of lost work.
• Global Serviceability: Standardized components and a modular control architecture mean this press can be serviced anywhere. KINTEK's support network spans major research centers, and our engineers can guide local technicians through troubleshooting via video call, often resolving issues within hours, minimizing downtime.
• Customization Backed by Expert Support: Choose from temperature ranges, chamber options, cooling methods, and mold sizes to match specific research needs. Whether you need a larger daylight opening for custom tooling or a specific voltage configuration, our modular design allows you to configure the press to exact specifications without long lead times. KINTEK provides 12 months of warranty, remote technical consulting for the life of the product, and affordable aftermarket parts. Our application engineers are available to help design custom tooling and process recipes.

To discuss how the XP26 vacuum hot press can accelerate your material development, contact us today for a personalized quote or technical consultation.
